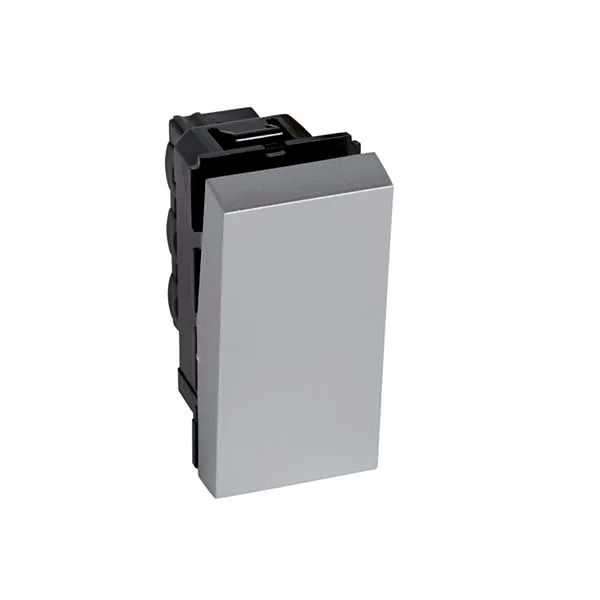

Arteor™ 1-Way Switch 20 AX V Aluminium Finish IP40 Rated 250V Legrand

BRAND: Legrand
SKU: 571009
$80.90 List price: $100.80
1 EA ($80.90 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Rated at 250 V AC and 20 A, the Arteor™ 1-Way Switch 20 AX V Aluminium Finish is designed for home, commercial, and controlled-environment lighting applications. It features a 1 module square design, screwed terminal connection, rocker/button operation, and a lacquered matt aluminium surface finish. The switch has IP40 protection and IK04 impact strength, with dimensions (H x L x W): 45mm x 42.2mm x 22.5mm and AS/NZS 3000 compliance. See the full product details below for applications, installation requirements, and warranty information.
Technical Specifications
  • Rated Voltage: 250 V AC
  • Rated Current: 20 A
  • Switching Current for Fluorescent Lamps: 20 AX
  • Operating Temperature: -5 to 50 °C
  • Storage Temperature: -10 to 70 °C
  • Cable Section: 6-6 mm²
  • Mounting Method: Modular device for domestic switching
  • Connection Type: Screwed terminal
  • Degree of Protection: IP40
  • Impact Strength: IK04
  • Material: Halogen-free thermoplastic
  • Surface Finish: Lacquered matt aluminium
  • Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
  • Weight: 0.1 kg
Key Features
  • 20 AX rated current for high load capacity
  • 1 module square version with aluminium finish
  • Rocker/button operation for easy switching
  • IP40 degree of protection suitable for indoor use
  • IK04 impact resistance for durability
  • Halogen-free thermoplastic material with lacquered matt surface
  • Screwed terminal connection for secure wiring
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
  • Residential: Home lighting control
  • Commercial: Office and retail lighting systems
  • Industrial: Light switching in controlled environments
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free materials reduce environmental impact during disposal
  • Durable design extends product life reducing waste
  • Energy efficient switching reduces unnecessary power consumption
Warranty Information

Legrand offers a standard 3-year warranty covering manufacturing defects and performance issues.

Available Now

The Legrand Arteor 1-Way Switch 20 AX 250 V - 1 Module Square Aluminium is available for immediate purchase, ideal for residential and commercial lighting control applications.

FAQ

Q: What is the rated voltage and current of the Arteor™ 1-Way Switch?
A: The switch has a rated voltage of 250 V AC and a rated current of 20 A.

Q: What protection rating does the Arteor™ 1-Way Switch have?
A: The switch has IP40 degree of protection and IK04 impact strength.


Pair the switch with an Arteor square coverplate for a coordinated modular installation.
For vertical configurations, an Arteor vertical coverplate provides a suitable coverplate option.
For a six-module installation, an Arteor Square Plate 6 Module provides a larger modular plate option.

Refer to the intermediate switch wiring guide for information relevant to intermediate switch installations.

Licensed electricians can unlock trade access pricing — log in or register to get started.


F00917EN-02 (F00917EN-02.pdf, 137 Kb) [Download]

ex223001_0558 (ex223001_0558.pdf, 106 Kb) [Download]
