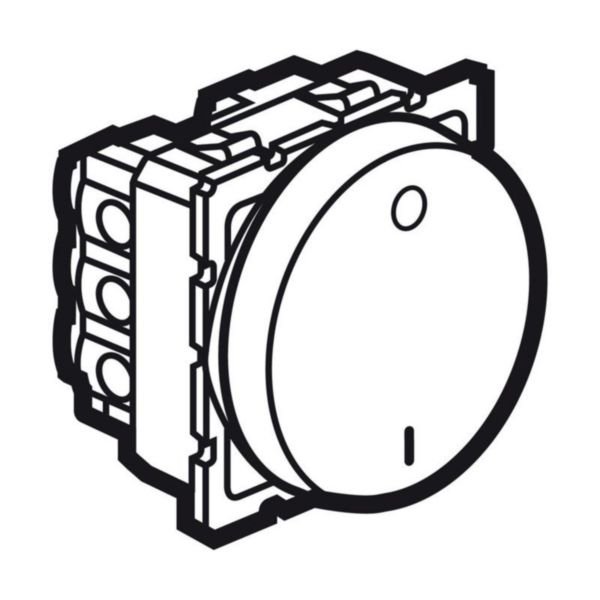

Arteor™ 2-Way Double Pole Switch 20 AX Rated IP40 Protection Legrand

BRAND: Legrand
SKU: 573077
$68.80 List price: $85.70
1 EA ($68.80 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Arteor™ 2-way double pole switch is a reliable solution for safe electrical disconnection, featuring a 20 AX rating and two-way switching capability for
Technical Specifications
  • Rated current: 20 A
  • Rated voltage: 250 V AC
  • Switching current for fluorescent lamps: 20 AX
  • Number of modules: 2
  • Mounting method: Modular device with snap fastening
  • Material: Thermoplastic, halogen free
  • Degree of protection: IP40
  • Impact resistance: IK04
  • Connection type: Screwed terminal
  • Operating temperature: -5 to 50 °C
  • Storage temperature: -10 to 70 °C
  • Cable section: 6-6 mm²
  • Frequency: 50-60 Hz
  • Dimensions (H x L x W): 45mm x 42mm x 45mm
  • Weight: 0.1 kg
Key Features
  • 20 AX rated double pole switch for safe disconnection
  • Two-way switching capability for controlling a circuit from two locations
  • Round design with 2 modules for modular installation
  • White glossy thermoplastic material, halogen free
  • IP40 rated for protection against solid objects
  • IK04 impact resistance
  • Screwed terminal connection for secure wiring
  • Operating temperature range from -5°C to 50°C
Professional Installation Requirements
  • Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
  • Residential: Home electrical wiring for lighting and appliance control
  • Commercial: Office and retail building electrical installations
  • Industrial: Suitable for general electrical switching applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free materials reduce environmental impact during disposal
  • Durable thermoplastic construction extends product lifespan
Warranty Information

Legrand standard warranty applies, typically 2 years against manufacturing defects.

Available Now

The Legrand Arteor 2-way double pole switch is available for immediate purchase, ideal for residential and commercial electrical wiring applications.

F00857EN-03 (F00857EN-03.pdf, 513 Kb) [Download]

ex223001_0560 (ex223001_0560.pdf, 107 Kb) [Download]
