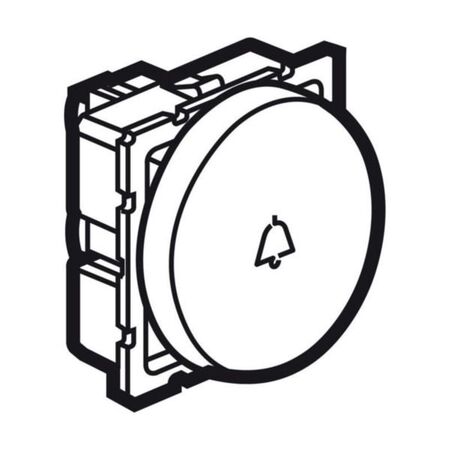

Arteor™ 2-Way Push-Button with Bell Symbol | 6A Rated Current | IP40 Protection | @EA of 1 | by Legrand
The Arteor™ 2-way push-button with bell symbol is designed for easy identification and reliable doorbell control. With a rated current of 6A at 250V AC and a modular design featuring 2 round modules, it's perfect for residential and commercial applications. Made from halogen-free thermoplastic, this push-button ensures durability and safety, making it an ideal choice for any doorbell system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Push-Button with Bell Symbol | 6A Rated Current | IP40 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573080
Alternatively Known As: Doorbell push button, Bell switch, 2-way bell push button, Modular push button switch
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts (normally open): 1
- Number of contacts (normally closed): 0
- Number of poles: 1
- Connection type: Screwed terminal
- Mounting method: Snap-on module frame
- Material: Halogen free thermoplastic
- Degree of protection: IP40
- Impact strength: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- 2-way push-button with bell symbol for easy identification
- Rated current of 6A at 250V AC
- Modular device with 2 round modules
- Screwed terminal connection for secure wiring
- Snap-on mounting method for easy installation
- Halogen free thermoplastic material with glossy white finish
- IP40 degree of protection and IK04 impact strength
- Label space available for custom information
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential: Doorbell control in homes and apartments
- Commercial: Office and retail building doorbell systems
- General: Suitable for domestic switching devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction extends product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-way push-button with bell symbol is available for immediate purchase, ideal for residential and commercial doorbell applications.
