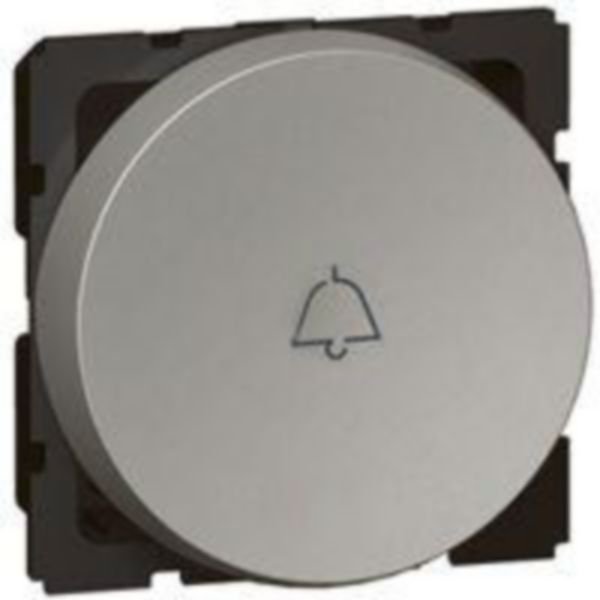

Arteor™ 2-Way Push-Button with Bell Symbol | 6A Rated Current | IP40 Protection | @EA of 1 | by Legrand
The Arteor™ 2-way push-button with bell symbol is designed for easy identification and reliable operation in doorbell systems. With a rated current of 6A at 250V AC and an IP40 rating for protection against solid objects, this modular device features a durable matt lacquered magnesium finish. Ideal for both residential and commercial applications, it ensures secure wiring with its screwed terminal connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts (normally open): 1
- Number of contacts (normally closed): 0
- Number of poles: 1
- Connection type: Screwed terminal
- Mounting method: Module frame with snap fastening
- Material: Halogen free thermoplastic with lacquered magnesium surface
- Degree of protection: IP40
- Impact strength: IK04
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 2-way push-button with bell symbol for easy identification
- Rated current of 6A at 250V AC
- Modular device with 2 round modules
- Matt lacquered magnesium finish for durability and aesthetic appeal
- Screwed terminal connection for secure wiring
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Halogen free thermoplastic material
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Doorbell systems in homes and apartments
- Commercial: Office and retail building doorbell controls
- General: Suitable for domestic switching devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic and magnesium materials extend product life
- Energy efficient design with low power consumption
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-way push-button with bell symbol in magnesium finish is available for immediate purchase, ideal for residential and commercial doorbell applications.
