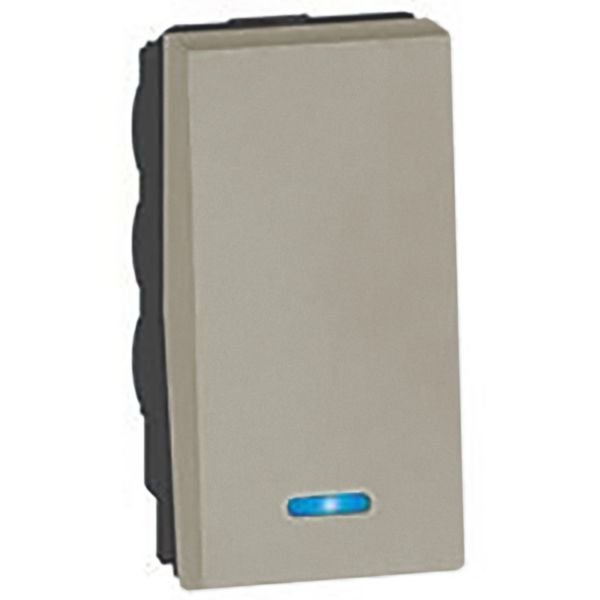

Arteor™ 2-Way Push-Button Switch | Blue LED Locator | IP40 Rated | by Legrand
The Arteor™ 2-way push-button switch with a blue LED locator is perfect for home and office lighting control. Rated for 6A at 250V AC, this modular switch features a secure screwed terminal connection and is made from halogen-free thermoplastic for durability. With an IP40 protection rating and IK04 impact resistance, it’s designed for reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of poles: 2
- Number of normally closed contacts: 1
- Number of normally open contacts: 1
- Contact type: Mechanical rocker
- LED locator: Blue LED included
- Mounting method: Snap-on module frame
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Cable section: 4-4 mm²
- Material: Halogen-free thermoplastic
- Surface finish: Lacquered matt
- Connection type: Screwed terminal
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 2-way push-button with blue LED locator
- Rated current 6A at 250V AC
- Single module size for modular installation
- Screwed terminal connection for secure wiring
- IP40 protection rating and IK04 impact resistance
- Halogen-free thermoplastic material with lacquered matt finish
- Snap-on mounting method for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Home lighting control
- Commercial: Office and retail lighting systems
- Building automation: Compatible with modular wiring devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product lifespan
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-Way Push-Button with Locator 1 Module Champagne is available for immediate purchase, ideal for residential and commercial lighting control applications.
