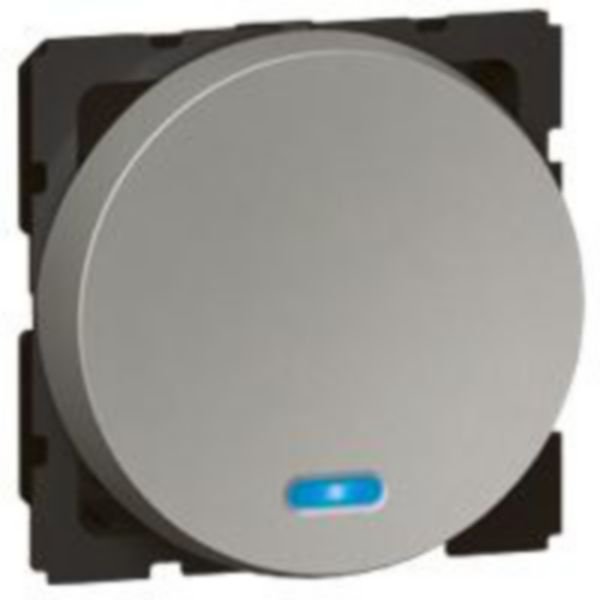

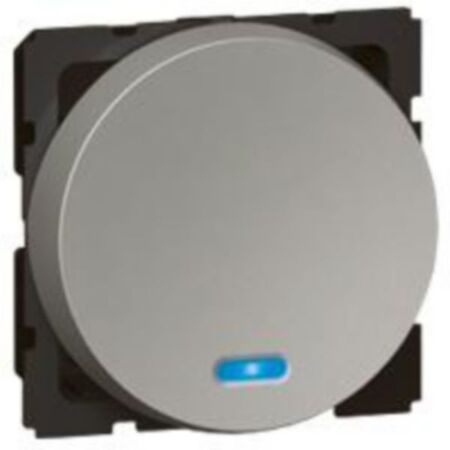

Arteor™ 2-Way Push-Button with Locator | 6A Rated Current | IP40 Protection | Magnesium Finish | @EA of 1 | by Legrand
The Arteor™ 2-way push-button with locator is designed for efficient lighting control in residential and commercial settings. Featuring a 6A rated current and IP40 protection, this flush-mounted switch is made from halogen-free thermoplastic with a sleek magnesium finish. Ideal for home and office applications, it ensures durability and energy efficiency with its integrated blue LED locator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Push-Button with Locator | 6A Rated Current | IP40 Protection | Magnesium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573152
Alternatively Known As: 2-way push button switch, Arteor push button, Legrand push button switch, LED locator push button
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally closed: 1
- Number of contacts normally open: 1
- Number of poles: 2
- Connection type: Screwed terminal
- Mounting method: Flush-mounted
- Material: Halogen free thermoplastic
- Surface finish: Lacquered matt
- Colour: Grey
- Degree of protection: IP40
- Impact strength: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- 2-way push-button with blue LED locator
- Rated current 6A, voltage 250V AC
- Flush-mounted with snap fastening
- Halogen free thermoplastic material with lacquered matt finish
- IP40 protection and IK04 impact resistance
- Screwed terminal connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into existing wiring systems.
Applications
- Residential: Home lighting control
- Commercial: Office and building lighting systems
- Industrial: Control panels requiring push-button switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Energy-efficient LED locator reduces power consumption
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-way push-button with locator in magnesium finish is available for immediate purchase, ideal for residential and commercial lighting control applications.
