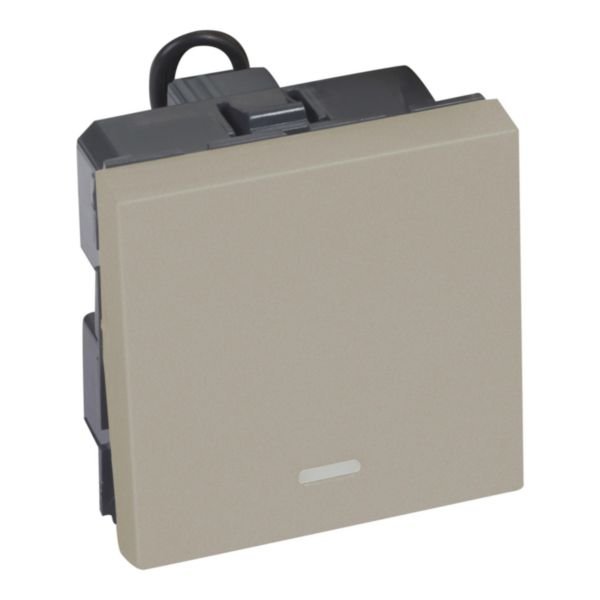

Arteor™ 2-Way Push-Button with Locator | 6A Rated Current | IP40 Protection | Matt Lacquered Titanium Finish | @Each of 1 | by Legrand
The Arteor™ 2-way push-button with locator is designed for efficient home and building lighting control. Featuring a blue LED indicator, 6A rated current, and IP40 protection, this modular device is perfect for residential, commercial, and industrial applications. Made from halogen-free thermoplastic, it ensures durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Push-Button with Locator | 6A Rated Current | IP40 Protection | Matt Lacquered Titanium Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 573049
Alternatively Known As: 2-way push button switch, push-button with indicator, Legrand Arteor switch, modular push button
Technical Specifications
- Number of contacts normally closed: 1
- Number of contacts normally open: 1
- Number of poles: 2
- Rated current: 6 A
- Nominal voltage: 250 V AC
- Connection type: Screwed terminal
- Mounting method: Module frame with snap fastening
- Material: Thermoplastic, halogen free
- Protection rating: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- With blue LED locator
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 2-way push-button with blue LED locator
- Rated current 6A, nominal voltage 250V AC
- Equipped with screwed terminal connection
- Modular device for domestic switching
- Halogen free thermoplastic material
- IP40 protection rating and IK04 impact resistance
- Matt lacquered titanium finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Home lighting control
- Commercial: Office and building lighting systems
- Industrial: Control panels and automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction for long product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-way push-button with locator in champagne finish is available for immediate purchase, ideal for home and building wiring device applications.
