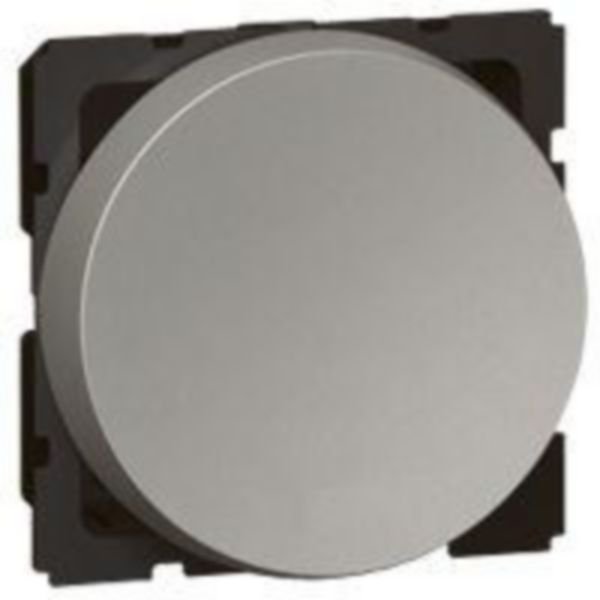

Arteor™ 2-Way Push-Button Switch | 6A Rated Current | IP40 Protection | Lacquered Matt Magnesium | @EA of 1 | by Legrand
The Arteor™ 2-way push-button switch offers versatile control with a rated current of 6A at 250V AC, making it perfect for both residential and commercial lighting systems. Designed for flush-mounted installation, this switch features a durable halogen-free thermoplastic body with a stylish lacquered matt magnesium finish. With an IP40 rating for protection against solid objects, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally closed: 1
- Number of contacts normally open: 1
- Number of poles: 2
- Mounting method: Flush-mounted
- Connection type: Screwed terminal
- Material: Halogen-free thermoplastic
- Surface finish: Lacquered matt magnesium
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 2-way push-button switch for versatile control
- Rated current of 6A at 250V AC
- Flush-mounted installation with snap fastening
- Made from halogen-free thermoplastic with lacquered matt magnesium finish
- IP40 rated for protection against solid objects
- IK04 impact resistance rating
- Screwed terminal connection for secure wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential: Home lighting control
- Commercial: Office and building lighting systems
- Industrial: Control panels and automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product lifespan
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now

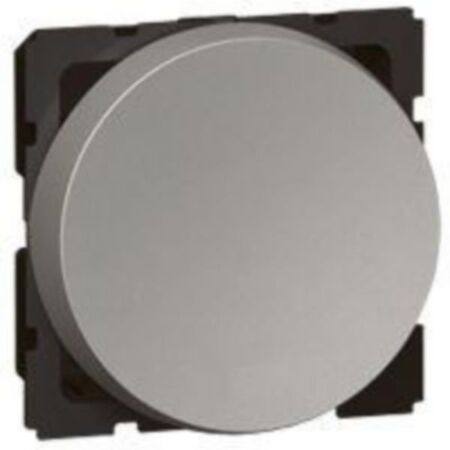

The Legrand Arteor 2-way push-button 2 round modules magnesium is available for immediate purchase, ideal for residential and commercial lighting control applications.
