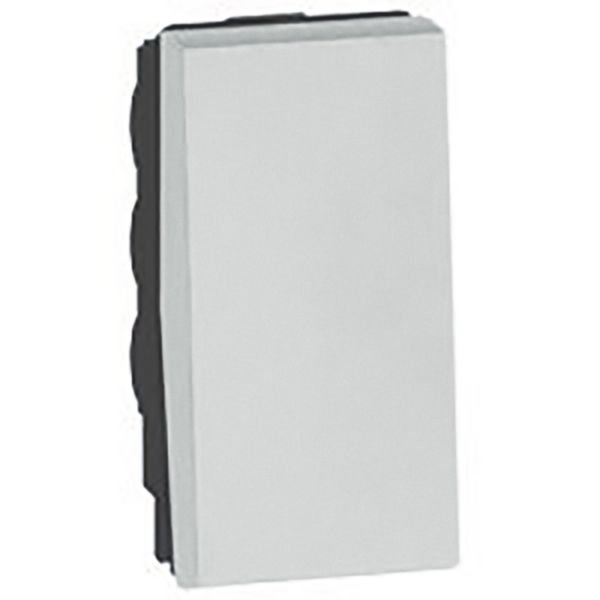

Arteor™ 2-Way Push-Button Switch | Matt Aluminium Finish | IP40 Rated | @Each of 1 | by Legrand
The Arteor™ 2-way push-button switch is designed for seamless control of lighting circuits in domestic and commercial settings. With a sleek matt aluminium finish and IP40 protection, it ensures durability and style. Ideal for modular installations, this switch features a secure screwed terminal connection and is made from halogen-free thermoplastic, making it both environmentally friendly and reliable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Push-Button Switch | Matt Aluminium Finish | IP40 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 573042
Alternatively Known As: 2-way light switch, push button switch, modular push-button, Legrand Arteor switch
Technical Specifications
- Number of contacts normally closed: 2
- Number of contacts normally open: 2
- Number of poles: 4
- Rated current: 6 A
- Nominal voltage: 250 V AC
- Connection type: Screwed terminal
- Mounting method: Module frame with snap fastening
- Material: Halogen free thermoplastic
- Surface finish: Matt aluminium
- Degree of protection: IP40
- Impact strength: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 2-way push-button with rocker operation
- Single module size for modular installation
- Rated current 6A, nominal voltage 250V AC
- Screwed terminal connection for secure wiring
- Halogen free thermoplastic material
- Matt soft aluminium finish
- IP40 degree of protection and IK04 impact resistance
- Snap-on mounting method for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Domestic switching devices
- Home and building wiring systems
- Control of lighting circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Modular design supports easy replacement and recycling
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-Way Push-Button 1 Module Soft Aluminium is available for immediate purchase, ideal for residential and commercial lighting control applications.
