Trade Discount 20%

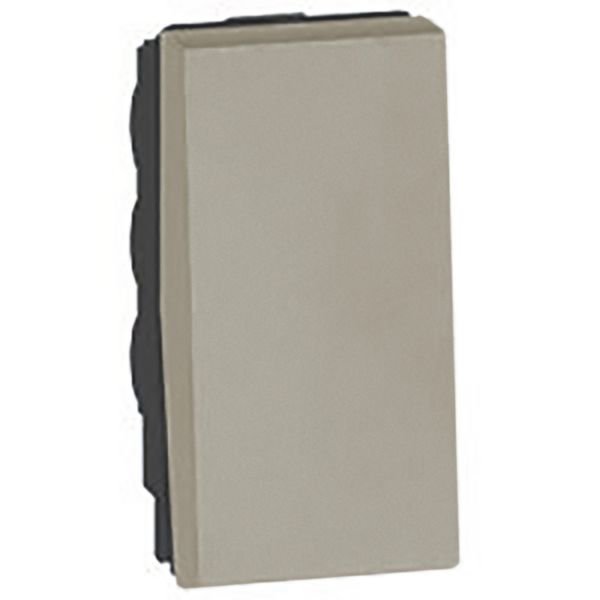

Arteor™ 2-Way Push-Button Switch | Matt Lacquered Finish | IP40 Rated | @EA of 1 | by Legrand
The Arteor™ 2-way push-button switch offers versatile control with a sleek matt lacquered finish, making it perfect for both residential and commercial lighting systems. Designed for easy integration, this single module switch features a screwed terminal connection for secure wiring and is made from halogen-free thermoplastic for enhanced durability. With an IP40 rating, it provides protection against solid objects, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Push-Button Switch | Matt Lacquered Finish | IP40 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573043
Alternatively Known As: 2-way push button switch, Arteor push button, modular push button switch, Legrand push button switch
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally closed: 2
- Number of contacts normally open: 2
- Number of rockers: 2
- Number of poles: 4
- Connection type: Screwed terminal
- Mounting method: Module frame with snap fastening
- Material: Thermoplastic, halogen free
- Surface finish: Matt lacquered
- Colour: Titanium
- Degree of protection: IP40
- Impact strength: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 2-way push-button switch for versatile control
- Single module size for easy integration
- Screwed terminal connection for secure wiring
- Halogen free thermoplastic material with lacquered matt finish
- IP40 rated for protection against solid objects
- IK04 impact resistance for durability
- Compatible with modular support frames and plates
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Home lighting control
- Commercial: Office and building lighting systems
- General: Modular electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable design extends product life and reduces waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-Way Push-Button 1 Module Champagne is available for immediate purchase, ideal for residential and commercial electrical switching applications.
