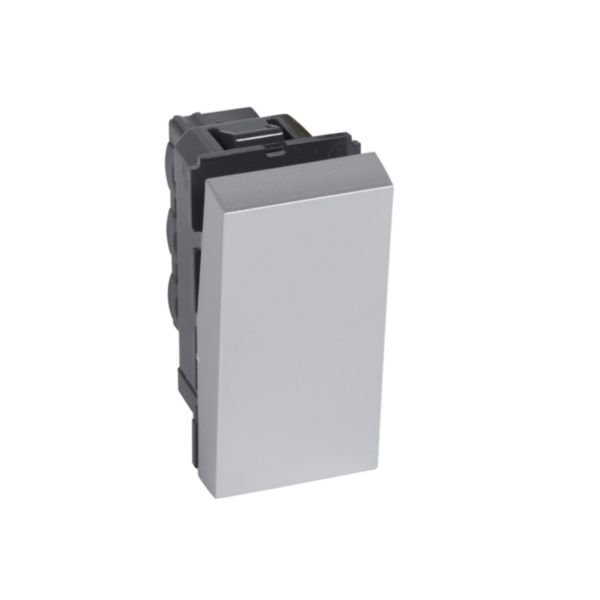

Arteor™ 2-Way Switch 10 AX 250 V~ | Square Module Design | IP40 Rated | Matt Aluminium Finish | @EA of 1 | by Legrand
The Arteor™ 2-way switch 10 AX 250 V~ is designed for reliable lighting control in both residential and commercial settings. With a square module design and a sleek matt aluminium finish, it offers 10 AX rated current and IP40 protection, ensuring durability and safety. Ideal for home lighting and office systems, this switch combines functionality with modern aesthetics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Switch 10 AX 250 V~ | Square Module Design | IP40 Rated | Matt Aluminium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 571005
Alternatively Known As: Legrand 2-way light switch, Arteor 10AX switch, Aluminium rocker switch, Modular light switch
Technical Specifications
- Rated current: 10 A
- Nominal voltage: 250 V AC
- Switching current for fluorescent lamps: 10 AX
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Degree of protection: IP40
- Impact strength: IK04
- Material: Thermoplastic, halogen free
- Mounting method: Modular device with snap fastening
- Number of modules: 1
- Number of rockers: 1
- Surface finish: Matt lacquered aluminium
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 10 AX rated current for reliable switching
- 2-way switch functionality for versatile lighting control
- Square 1 module design with soft aluminium finish
- Thermoplastic material, halogen free with lacquered matt surface
- IP40 degree of protection and IK04 impact resistance
- Screwed terminal connection for secure wiring
- Compatible with modular device frames
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Home lighting control
- Commercial: Office and retail lighting systems
- General: Domestic switching devices for lighting circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Energy efficient switching reduces unnecessary power consumption
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-Way Switch 10 AX 250 V~ 1 Module Square Alu is available for immediate purchase, ideal for residential and commercial lighting control applications.
