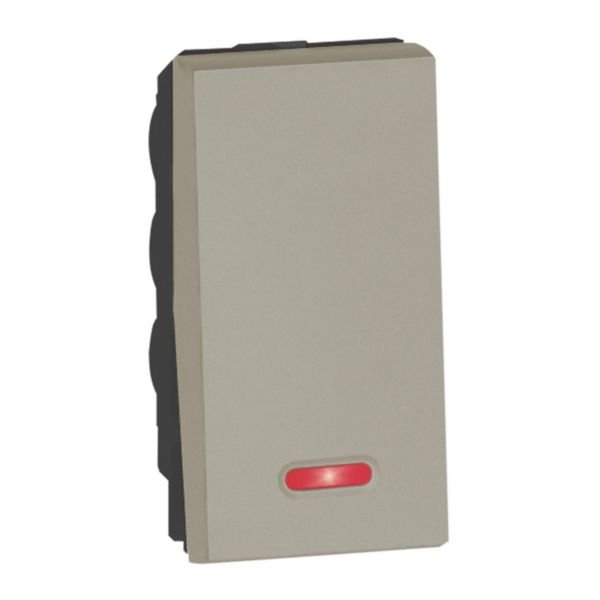

Arteor™ 2-Way Switch with Indicator | 20 AX Rated | IP40 Protection | Champagne Finish | @EA of 1 | by Legrand
The Arteor™ 2-way switch with indicator is designed for reliable lighting control, featuring a 20 AX rating for switching fluorescent lamps and an illuminated LED indicator. Ideal for both residential and commercial applications, this modular device ensures safety with its IP40 protection and halogen-free materials, making it a perfect choice for modern lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 2-Way Switch with Indicator | 20 AX Rated | IP40 Protection | Champagne Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572383
Alternatively Known As: Two-way light switch with indicator, 20A switch, Legrand Arteor switch, illuminated 2-way switch
Technical Specifications
- Rated current: 20 A
- Nominal voltage: 250 V AC
- Switching current for fluorescent lamps: 20 AX
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Cable section compatibility: 6-6 mm²
- Connection type: Screwed terminal
- Degree of protection: IP40
- Impact resistance: IK04
- Material: Thermoplastic, halogen free
- Surface finish: Lacquered matt
- Lighting: LED exchangeable indicator
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 20 AX rated for switching fluorescent lamps
- 2-way switch with illuminated indicator
- Modular device suitable for domestic switching
- LED exchangeable lighting for indicator
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Thermoplastic material with lacquered matt finish
- Halogen free
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Lighting control in homes
- Commercial: Office and retail lighting control
- General: Two-way switching applications for lighting circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED indicator reduces energy consumption compared to traditional bulbs
- Halogen-free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2-Way Switch with Indicator 20 AX 250 V - 1 Module - Champagne is available for immediate purchase, ideal for residential and commercial lighting control applications.
