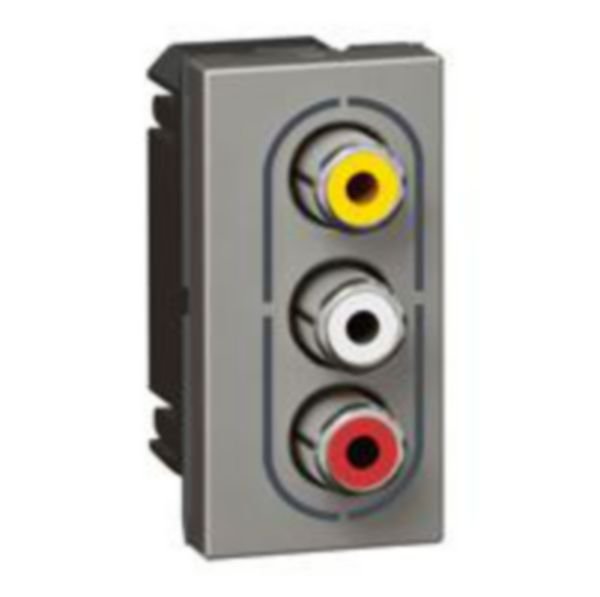

Arteor™ 3 x RCA Socket | Flush-Mounted | IP40 Rated | Matt Grey | @EA of 1 | by Legrand
The Arteor™ 3 x RCA socket is designed for seamless audio and video connections, featuring three female RCA sockets for stereo audio and composite video. Ideal for home entertainment systems, this flush-mounted module is made from halogen-free thermoplastic and offers IP40 protection, ensuring durability and safety in residential and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 3 x RCA Socket | Flush-Mounted | IP40 Rated | Matt Grey | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572773
Alternatively Known As: Triple RCA Socket, 3 RCA Audio Video Socket, RCA Wall Plate Socket
Technical Specifications
- 3 female RCA sockets for stereo audio and composite video
- Connection via screw terminals
- Flush-mounted installation, 1 module size
- Material: Thermoplastic, halogen free
- Surface finish: Matt grey
- IP rating: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Device width: 22.5 mm
- Device height: 45 mm
- Built-in depth: 23.8 mm
- Minimum installation box depth: 40 mm
- Dimensions (H x L x W): 45mm x 24mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 3 female RCA sockets for stereo audio and composite video
- Flush-mounted installation with 1 module size
- Connection via screw terminals
- Matt grey thermoplastic material, halogen free
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Suitable for audio/video systems
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical wiring standards and safety.
Applications
- Audio and video connection for home entertainment systems
- Connecting DVD players, cameras, video recorders, and videoconferencing equipment
- Flush-mounted installation in residential and commercial buildings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction for long product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 3 x RCA Socket 1 Module Magnesium is available for immediate purchase, ideal for residential and commercial audio/video wiring applications.
