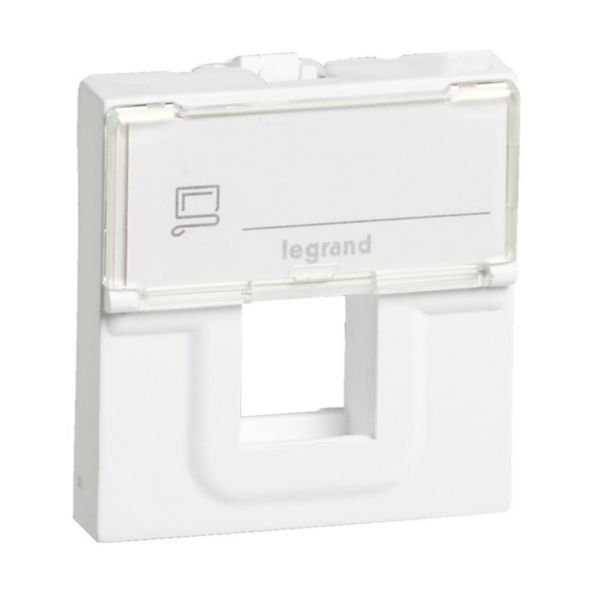

Arteor™ Adaptor for Systimax Data Socket | 2 Modules | IP20 Rated | White | @EA of 1 | by Legrand
The Arteor™ Adaptor for Systimax Data Socket is designed for seamless integration with single connector systems, featuring a modular design for easy installation. Ideal for home and building wiring applications, this adaptor includes a dust cover and a separate earthing connection, ensuring safety and reliability. With an IP20 rating and impact strength of IK04, it’s perfect for both residential and commercial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Adaptor for Systimax Data Socket | 2 Modules | IP20 Rated | White | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572338
Alternatively Known As: Systimax data socket adaptor, Arteor data socket adapter, Legrand data socket connector adaptor
Technical Specifications
- Type of fastening: Snap engage
- Assembly arrangement: Modular device for domestic switching devices
- Type of connector: Other
- Category: 3
- Colour: White (RAL 9003)
- Connection type: Other
- Shielded housing: No
- Separate earthing connection: Yes
- Separate strain relief: No
- Mounting method shielding connection: None
- Outlet direction: Straight
- With dust cover: Yes
- Degree of protection (IP): IP20
- Mechanical coding: No
- Colour coding: No
- Degree of impact strength (IK): IK04
- Operating temperature: 5-45 °C
- Storage temperature: -20-70 °C
- Halogen free: Yes
- Antimicrobial treatment: No
- Dimensions (H x L x W): 45mm x 40mm x 45mm
- Weight: 0.1 kg
Key Features
- Adaptor for Systimax data sockets with single connector - 2 modules
- Equipped with transparent label holder
- White color with RAL 9003
- Separate earthing connection
- Dust cover included
- Degree of protection IP20
- Impact strength rating IK04
- Halogen free
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Home and building wiring devices
- Data socket adaptation for Systimax single connector systems
- Suitable for modular domestic switching device installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable design extends product lifecycle
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Adaptor for Systimax Data Socket - 2 Module White is available for immediate purchase, ideal for home and building wiring device applications.
