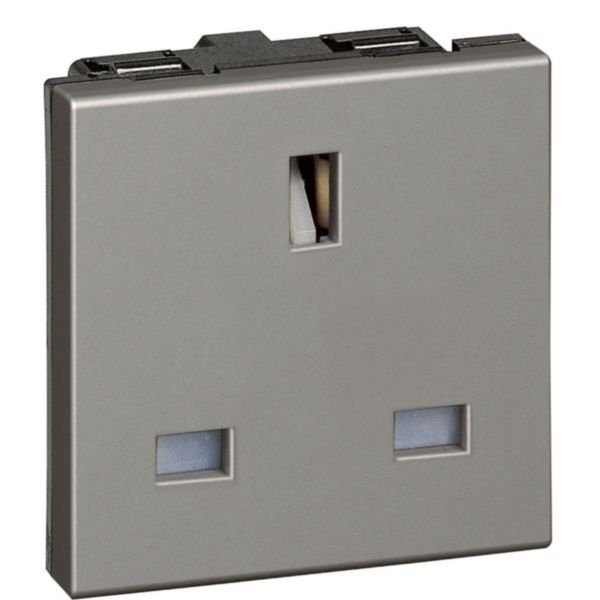

Arteor™ BS 1363 Socket | 13A 2P+E | IP40 Rated | Magnesium Finish | @EA of 1 | by Legrand
The Arteor™ BS 1363 Socket is a reliable 13A 2P+E power outlet designed for both residential and commercial applications. With an IP40 rating for protection against solid objects and a sleek magnesium finish, this socket ensures safety and durability. Ideal for general-purpose power supply, it features enhanced contact protection and is easy to install with snap mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ BS 1363 Socket | 13A 2P+E | IP40 Rated | Magnesium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572611
Alternatively Known As: British Standard Socket Outlet, BS 1363 Power Socket, 13 Amp Socket, 2P+E Socket, Magnesium Power Outlet
Technical Specifications
- Nominal current: 13 A
- Nominal voltage: 250 V AC
- Frequency: 50-60 Hz
- Material: Halogen-free thermoplastic with lacquered matt finish
- Protection rating: IP40
- Impact resistance: IK04
- Connection type: Screwed terminal
- Number of modules: 2
- Mounting method: Snap mounting with module frame
- Enhanced contact protection included
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Cable section compatibility: 4-4 mm² flexible or rigid cable
- Dimensions (H x L x W): 45mm x 30mm x 45mm
- Weight: 0.1 kg
Key Features
- Conforms to BS 1363 Part 2 British Standard
- Shuttered for child safety
- ASTA licensed for safety compliance
- 2 modules size with magnesium finish
- Enhanced contact protection
- Snap mounting for easy installation
- Suitable for 13A nominal current and 250V voltage
- IP40 rated for protection against solid objects
- IK04 impact resistance
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential electrical outlets
- Commercial and office power supply
- General purpose power socket for appliances
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free thermoplastic material reduces environmental impact
- Durable lacquered surface extends product lifespan
- Energy efficient design reduces power loss
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor™ BS 1363 13A 2P+E Socket in magnesium finish is available for immediate purchase, ideal for residential and commercial wiring applications.
