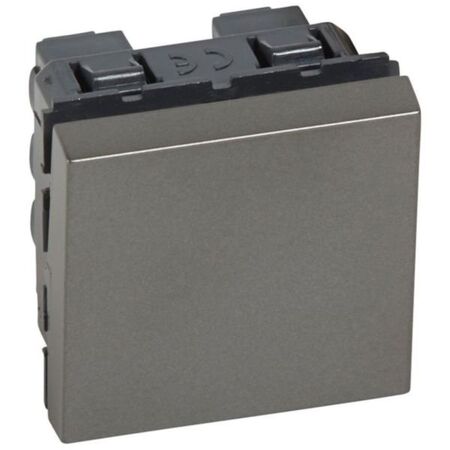

Arteor™ Intermediate Switch | 10 AX Rating | 250 V~ | 2 Modules | Magnesium Finish | @EA of 1 | by Legrand
The Arteor™ Intermediate Switch is designed for reliable electrical control with a 10 AX rating and 250 V~ capacity, making it ideal for both residential and commercial wiring applications. This modular switch features a sleek magnesium finish and is made from halogen-free thermoplastic, ensuring durability and environmental safety. Perfect for intermediate switching needs, it combines functionality with modern aesthetics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Intermediate Switch | 10 AX Rating | 250 V~ | 2 Modules | Magnesium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572538
Alternatively Known As: Intermediate Rocker Switch, 10 Amp Intermediate Switch, 2 Module Switch, Arteor Switch
Technical Specifications
- Rated current: 10 A
- Nominal voltage: 250 V~
- Switching current for fluorescent lamps: 10 AX
- Number of modules: 2
- Mounting method: Modular frame with snap fastening
- Material: Halogen-free thermoplastic
- Degree of protection: IP40
- Impact resistance: IK04
- Connection type: Screwed terminal
- Operating temperature: -5 to 50 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- Intermediate switch with 10 AX rating for 250 V~
- Square version mechanical switch from Arteor™ range
- Equipped with rocker/button operation
- Modular device designed for 2 modules
- Made from halogen-free thermoplastic with lacquered matt finish
- Grey color with IP40 protection rating
- IK04 impact resistance
- Screwed terminal connection type
- Operating temperature range from -5 to 50 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential electrical wiring for intermediate switching
- Commercial building wiring systems
- Suitable for modular domestic switching devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Energy efficient switching reduces power loss
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Intermediate Switch 10 AX 250 V 2 Modules Magnesium is available for immediate purchase, ideal for residential and commercial electrical wiring applications.
