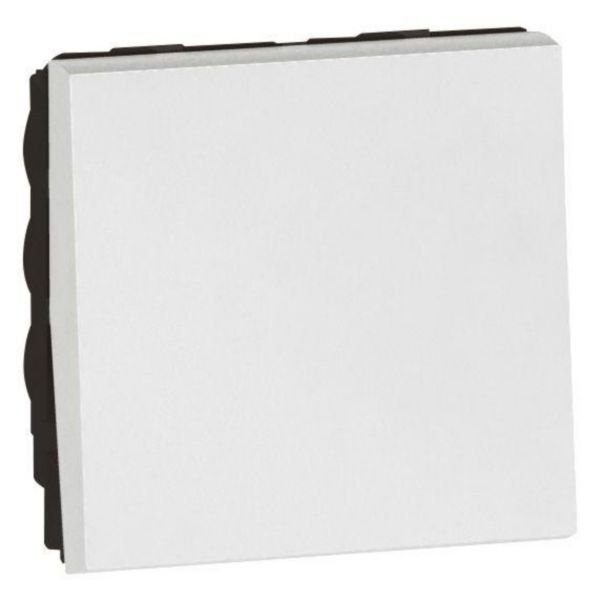

Arteor™ Intermediate Switch | 10 AX Rated | 250 V~ Operation | IP40 Protection | @EA of 1 | by Legrand
The Arteor™ Intermediate Switch is designed for reliable multi-way lighting control, rated at 10 AX for 250 V~ operation. Ideal for both residential and commercial applications, this switch features a sleek white glossy finish and is made from halogen-free thermoplastic for enhanced safety and durability. With IP40 protection against solid objects, it ensures secure and efficient operation in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Intermediate Switch | 10 AX Rated | 250 V~ Operation | IP40 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572038
Alternatively Known As: Intermediate light switch, multi-way switch, 10A intermediate switch, 2 module switch, Legrand Arteor switch
Technical Specifications
- Rated current: 10 A
- Rated voltage: 250 V~
- Switching current for fluorescent lamps: 10 AX
- Number of modules: 2
- Material: Thermoplastic, halogen free
- Degree of protection: IP40
- Impact resistance: IK04
- Connection type: Screwed terminal
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 10 AX rated for 250 V~ operation
- Intermediate switch suitable for multi-way switching
- 2 modular device size for easy integration
- White glossy thermoplastic material
- Halogen free plastic for environmental safety
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Screwed terminal connection for secure wiring
- Snap fastening for easy mounting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential electrical wiring for lighting control
- Commercial building electrical installations
- Intermediate switching in multi-way lighting circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic housing extends product life
- Energy efficient switching reduces power loss
Warranty Information
Legrand offers a standard warranty of 2 years against manufacturing defects for the Arteor range.
Available Now
The Legrand Arteor Intermediate Switch 10 AX 250 V 2 Modules White is available for immediate purchase, ideal for residential and commercial multi-way lighting control applications.
