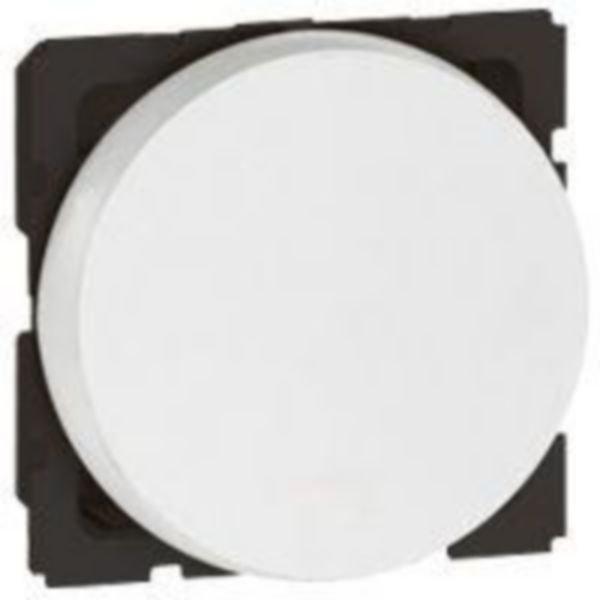

Arteor™ Intermediate Switch 10 AX 250 V~ Round Design Variant-1 Legrand
The Arteor™ Intermediate Switch is designed for controlling lighting circuits from multiple locations, featuring a robust 10 AX rated current at 250 V~.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 10 A
- Rated voltage: 250 V AC
- Switching current for fluorescent lamps: 10 AX
- Number of modules: 2
- Mounting method: Modular frame with snap fastening
- Material: Thermoplastic, halogen free
- Degree of protection: IP40
- Impact resistance: IK04
- Connection type: Screwed terminal
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- Intermediate switch for controlling lighting circuits from multiple locations
- 10 AX rated current at 250 V~
- Round design with 2 modules
- White glossy thermoplastic material
- Halogen free
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Screwed terminal connection for secure wiring
- Modular device compatible with standard domestic switching systems
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Home lighting and electrical control
- Commercial: Office and retail lighting control
- Industrial: Modular electrical switching systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product lifespan
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand Arteor Intermediate Switch 10 AX 250 V round 2 modules white is available for immediate purchase, ideal for residential and commercial electrical switching applications.
