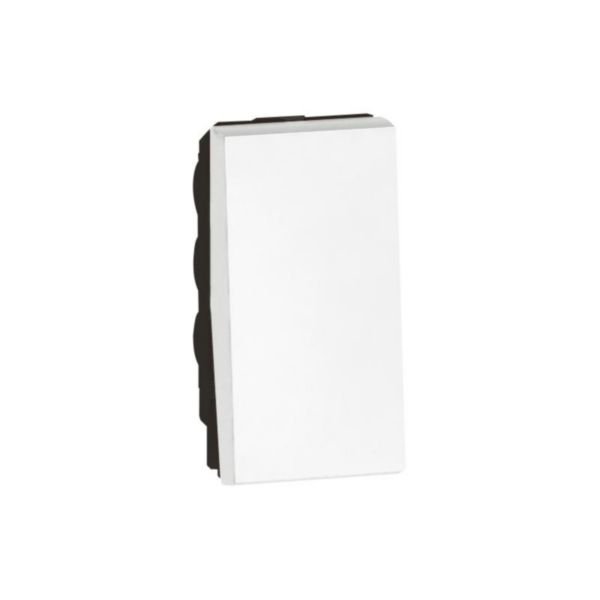

Arteor™ Intermediate Switch | 10 AX Rated | IP40 Protection | White | @Each of 1 | by Legrand
The Arteor™ Intermediate Switch is designed for controlling lighting circuits from multiple locations, featuring a robust 10 AX rated current at 250 V~. Ideal for both residential and commercial applications, this switch is made from halogen-free thermoplastic and offers IP40 protection, ensuring durability and safety in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Intermediate Switch | 10 AX Rated | IP40 Protection | White | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572008
Alternatively Known As: Intermediate light switch, 10A intermediate switch, modular intermediate switch, Legrand Arteor switch
Technical Specifications
- Rated current: 10 A
- Rated voltage: 250 V~
- Switching current for fluorescent lamps: 10 AX
- Number of modules: 1
- Material: Thermoplastic, halogen free
- Degree of protection: IP40
- Impact resistance: IK04
- Connection type: Screwed terminal
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 6-6 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Intermediate switch for controlling lighting circuits from multiple locations
- 10 AX rated current at 250 V~
- 1 module size for modular installation
- White glossy thermoplastic material
- Halogen free plastic
- IP40 degree of protection
- IK04 impact resistance
- Screwed terminal connection
- Snap fastening for easy mounting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Home lighting and electrical control
- Commercial: Office and retail electrical switching
- Industrial: Modular electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable construction extends product life and reduces waste
Warranty Information
Legrand offers a standard warranty of 2 years against manufacturing defects for the Arteor range.
Available Now
The Legrand Arteor Intermediate Switch 10 AX 250 V 1 Module White is available for immediate purchase, ideal for residential and commercial electrical switching applications.
