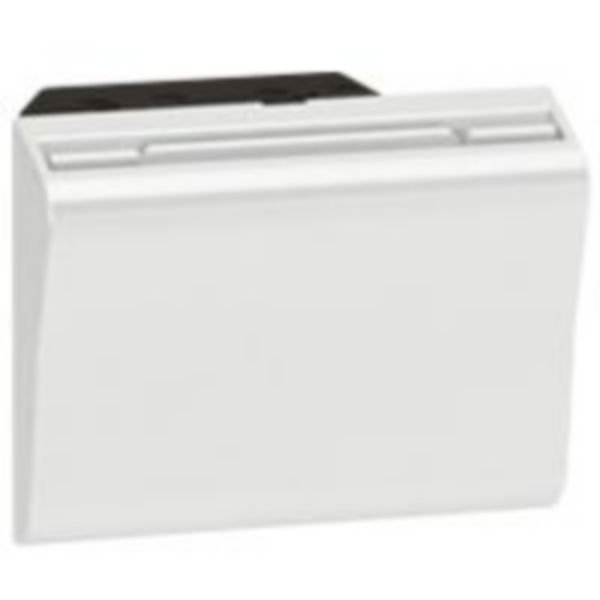

Arteor™ Key Fob Switch | 230 V | Flush-Mounted | IP40 Rated | @Each of 1 | by Legrand
The Arteor™ Key Fob Switch is designed for efficient power control in hotel rooms and commercial buildings, featuring a 230 V operation and a flush-mounted design. With a time delay of approximately 30 seconds after card removal and integrated LED orientation lighting, this switch ensures convenience and energy savings. Ideal for access control systems, it is built with halogen-free thermoplastic for enhanced safety and environmental benefits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Key Fob Switch | 230 V | Flush-Mounted | IP40 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572230
Alternatively Known As: Key Card Switch, Hotel Key Switch, Card Holder Switch, Power Control Switch
Technical Specifications
- Wiring system: Single-pole switch
- Operation method: Hotel card activation
- Mounting: Flush-mounted with snap fastening
- Material: Halogen-free thermoplastic
- Colour: White (RAL 9003)
- Lighting: Non-exchangeable LED for orientation
- Protection rating: IP40
- Impact resistance: IK04
- Nominal voltage: 230 V AC
- Rated current: 2 A
- Switching current for fluorescent lamps: 2 AX
- Connection type: Screwed terminal
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 55 °C
- Frequency: 50-60 Hz
- Cable section: 2.5 mm²
- Dimensions (H x L x W): 47mm x 55.5mm x 61mm
- Weight: 0.1 kg
Key Features
- Mechanical key card switch for energizing circuits with key fob or smart card
- Time delay of approximately 30 seconds after card removal
- Flush-mounted installation with snap fastening
- LED orientation lighting integrated
- Halogen-free thermoplastic material with glossy white finish
- Rated current 2 A, nominal voltage 230 V
- IP40 protection rating and IK04 impact resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Hotel rooms for power supply control based on guest presence
- Residential and commercial buildings requiring controlled power activation
- Access control systems using key fob or smart card
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by enabling power only when the key card is inserted
- Halogen-free materials contribute to lower environmental impact
Warranty Information
Legrand offers a standard warranty covering manufacturing defects; please refer to official documentation for specific terms.
Available Now
The Legrand Arteor™ Key Fob Switch 230 V 2 Modules White is available for immediate purchase, ideal for hotel and building access control applications.
