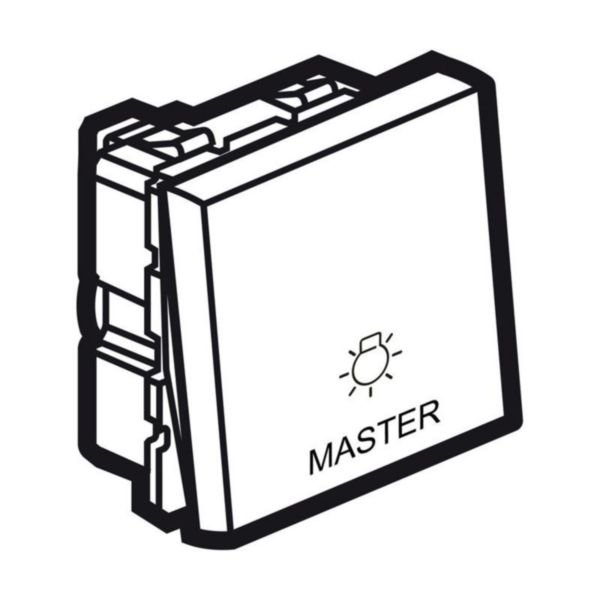

Arteor™ Master Push-Button for Lighting Control | 2 Modules | IP40 & IK04 Rated | Lacquered Matt Magnesium | @Each of 1 | by Legrand
The Arteor™ Master Push-Button for Lighting Control is designed for seamless lighting management in residential and commercial settings. Featuring a dual-module design, IP40 protection, and IK04 impact resistance, this push-button switch ensures durability and reliability. Ideal for centralized lighting control, it combines functionality with a sleek lacquered matt magnesium finish, making it a perfect choice for modern interiors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Master Push-Button for Lighting Control | 2 Modules | IP40 & IK04 Rated | Lacquered Matt Magnesium | @Each of 1 | by Legrand
Brand: Legrand
SKU: 573786
Alternatively Known As: Lighting Master Switch, Master Light Control Button, Push Button Light Switch, 2 Module Light Switch
Technical Specifications
- Type: Master push-button for lighting control
- Modules: 2
- Rated current: 6 A
- Nominal voltage: 250 V AC
- Number of poles: 2
- Number of contacts normally closed: 1
- Number of contacts normally open: 1
- Mounting method: Flush-mounted
- Connection type: Screwed terminal
- Degree of protection: IP40
- Impact resistance: IK04
- Material: Halogen free thermoplastic
- Surface finish: Lacquered matt magnesium
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- Master push-button for lighting control with ON/OFF all lights function
- 2 modules size, suitable for modular domestic switching devices
- Rated current 6 A, nominal voltage 250 V AC
- Flush-mounted installation with snap fastening
- IP40 degree of protection and IK04 impact resistance
- Equipped with screwed terminal connection
- Lacquered matt magnesium finish with symbol "light" imprint
- Halogen free thermoplastic material
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential lighting control
- Commercial lighting control
- Hotel and hospitality lighting systems
- General lighting ON/OFF control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction for long product life
- Energy efficient control by enabling centralized lighting management
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Master Push-Button for Lighting Control - 2 Modules - Magnesium is available for immediate purchase, ideal for residential and commercial lighting control applications.
