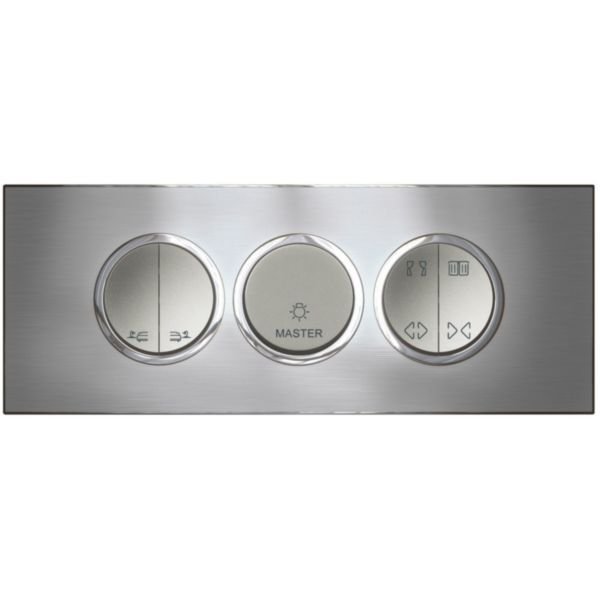

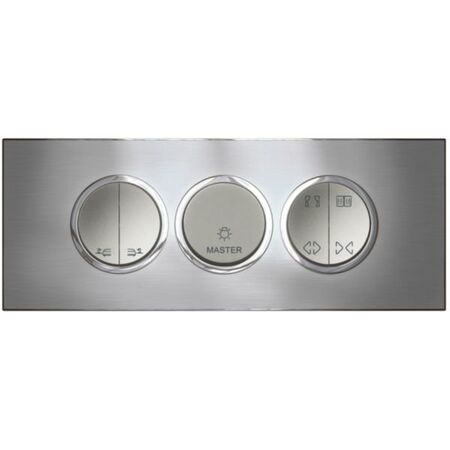

Arteor™ Master Push-Button for Lighting Control | 2 Round Modules | Lacquered Matt Magnesium | IP40 Rated | @EA of 1 | by Legrand
The Arteor™ Master Push-Button for Lighting Control is designed for seamless lighting management, featuring a 2-way control with 2 modules and an ON/OFF all lights function. Ideal for both residential and commercial applications, this push-button switch is made from halogen-free thermoplastic with a stylish lacquered matt magnesium finish, ensuring durability and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Master Push-Button for Lighting Control | 2 Round Modules | Lacquered Matt Magnesium | IP40 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573787
Alternatively Known As: Lighting master switch, lighting control push button, master light switch, 2 module push button switch
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of modules: 2
- Number of poles: 2
- Contact configuration: 1 normally closed, 1 normally open
- Operation method: Rocker push-button
- Connection type: Screwed terminal
- Mounting method: Flush-mounted with snap fastening
- Material: Halogen free thermoplastic
- Surface finish: Lacquered matt magnesium
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- Master push-button for lighting control with ON/OFF all lights function
- 2-way control with 2 modules
- Rated current 6 A at 250 V~
- Flush-mounted installation with snap fastening
- Equipped with rocker operation and luminous signal
- Halogen free thermoplastic material with lacquered matt magnesium finish
- IP40 degree of protection and IK04 impact resistance
- Label space with light symbol imprint
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential lighting control
- Commercial lighting control
- Hotel and hospitality lighting systems
- General lighting ON/OFF control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction extends product lifespan
- Energy efficient control reduces unnecessary power consumption
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor™ Master Push-Button for Lighting Control is available for immediate purchase, ideal for residential and commercial lighting control applications.
