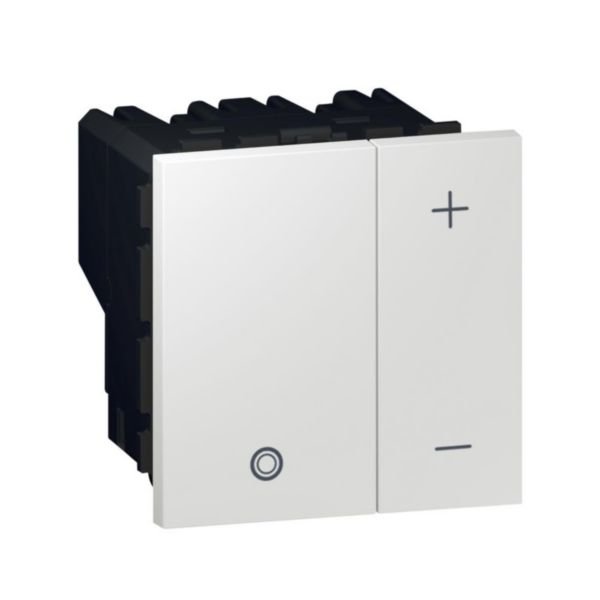

Arteor™ Push-button Dimmer for 0-10 V Ballast | 2 Square Modules | IP40 Rated | Nano Coated Glossy | @Each of 1 | by Legrand
The Arteor™ Push-button dimmer for 0-10 V ballasts is designed for seamless residential and commercial lighting control. Featuring a sleek 2 square module design and a nano coated glossy finish, this dimmer operates at 100/240 V and is IP40 rated for durability. Ideal for energy-efficient lighting solutions, it ensures easy installation with a mandatory neutral requirement and provides precise brightness control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Push-button Dimmer for 0-10 V Ballast | 2 Square Modules | IP40 Rated | Nano Coated Glossy | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572238
Alternatively Known As: 0-10V Push Button Dimmer, Arteor Dimmer 2 Modules, Legrand Light Dimmer Switch
Technical Specifications
- Nominal voltage: 240 V AC
- Frequency: 47-63 Hz
- Control voltage: 90-254 V
- Nominal power resistive load: 20-600 W
- Connection type: Screwed terminal
- Cable section: 2.5 mm²
- Material: Thermoplastic, halogen free
- Surface finishing: Nano coated glossy
- Degree of protection: IP40
- Impact strength: IK02
- Operating temperature: 0-35 °C
- Storage temperature: -10-70 °C
- Mandatory neutral required
- Dimensions (H x L x W): 45mm x 33mm x 45mm
- Weight: 0.1 kg
Key Features
- Push-button dimmer for ballasts 0-10 V
- 2 modular square modules design
- Operates at 100/240 V~ 50/60 Hz
- Mounting with screw and modular device for domestic switching
- Halogen free thermoplastic material with nano coated glossy surface
- IP40 degree of protection and IK02 impact strength
- Minimum brightness controllable
- Screwed terminal connection for cable section 2.5 mm²
- Mandatory neutral required
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential lighting control
- Commercial lighting systems
- Compatible with 0-10 V ballasts for dimmable lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings by dimming lighting to reduce power consumption
- Halogen free materials reduce environmental impact
- Long-lasting durable design reduces waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor™ Push-button Dimmer for ballast 0-10 V is available for immediate purchase, ideal for residential and commercial lighting control applications.
