Trade Discount 20%

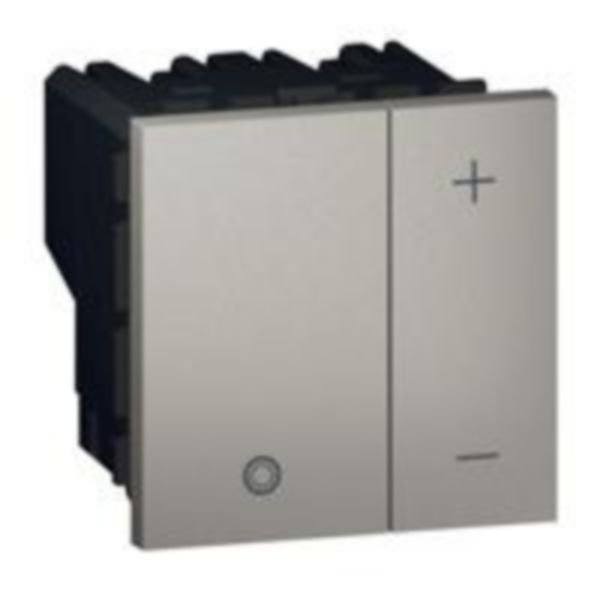

Arteor™ Push-button Dimmer for 0-10 V Ballast | 2 Square Modules | Lacquered Matt Silver | @Each of 1 | by Legrand
The Arteor™ Push-button dimmer is designed for 0-10 V ballasts, making it perfect for residential and commercial lighting control. With a sleek lacquered matt silver finish and modular design, it offers easy installation and energy-saving benefits. Ideal for qualified electricians, this dimmer supports a nominal power load of 20-600 W, ensuring compatibility with various lighting systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Push-button Dimmer for 0-10 V Ballast | 2 Square Modules | Lacquered Matt Silver | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572738
Alternatively Known As: 0-10V Push Button Dimmer, Arteor Dimmer 2 Modules, Legrand Magnesium Dimmer, 2 Module Push Dimmer
Technical Specifications
- Power supply: 100/240 V~ 50/60 Hz
- Control voltage: 90-254 V AC
- Nominal power resistive load: 20-600 W
- Mounting method: Module frame with screw fastening
- Material: Halogen free thermoplastic
- Surface finish: Lacquered matt silver
- Degree of protection: IP40
- Impact strength: IK02
- Cable section: 2.5 mm²
- Operating temperature: 0-35 °C
- Storage temperature: -10 to 70 °C
- Mandatory neutral wire required
- Dimensions (H x L x W): 45mm x 33mm x 45mm
- Weight: 0.1 kg
Key Features
- Push-button dimmer for ballasts 0-10 V
- Modular device for domestic switching devices
- 2 square modules size
- Mounting with screw and module frame
- Halogen free thermoplastic material with lacquered matt silver finish
- Suitable for IP40 protection degree and IK02 impact strength
- Nominal voltage 240 V, frequency 47-63 Hz
- Nominal power resistive load 20-600 W
- Screwed terminal connection type with cable section 2.5 mm²
- Mandatory neutral required
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential lighting control
- Commercial lighting systems
- Compatible with 0-10 V ballasts for dimmable lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings by dimming lighting to reduce power consumption
- Halogen free materials reduce environmental impact
- Supports longer lamp life through controlled dimming
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor™ Push-button Dimmer for ballast 0-10 V is available for immediate purchase, ideal for residential and commercial lighting control applications.
