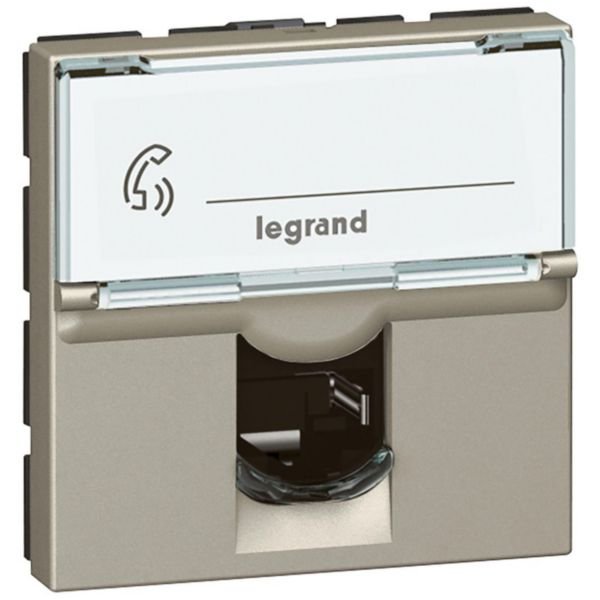

Arteor™ Telephone Socket RJ12 | 6 Contacts | 2 Modules | Champagne | @EA of 1 | by Legrand
The Arteor™ Telephone Socket RJ12 features 6 contacts and a 2-module design, making it perfect for reliable telephone and data connections in both residential and commercial settings. With a modular jack connector for quick installation and a dust cover for protection, this socket ensures safety and durability, while its halogen-free materials promote better indoor air quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ Telephone Socket RJ12 | 6 Contacts | 2 Modules | Champagne | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572685
Alternatively Known As: RJ12 Telephone Socket, 6 Contact Telephone Jack, 2 Module Telephone Socket, Legrand Telephone Socket
Technical Specifications
- Type: Telephone socket RJ12
- Contacts: 6
- Modules: 2
- Colour: Champagne (Titanium)
- Connection: Modular Jack connector with 1/4 turn terminal
- Mounting: Snap engage fastening
- Degree of protection: IP20
- Impact strength: IK04
- Operating temperature: 5-45°C
- Storage temperature: -20 to 70°C
- Separate earthing connection: Yes
- Label space: Yes
- Dust cover: Yes
- Halogen free: Yes
- Dimensions (H x L x W): 45mm x 40mm x 45mm
- Weight: 0.1 kg
Key Features
- RJ12 socket with 6 contacts for reliable telephone connection
- 2 module size suitable for standard modular frames
- Equipped with modular Jack connector with 1/4 turn terminal for fast connection and looping
- Separate earthing connection for safety
- Includes label space for easy identification
- Dust cover included to protect socket
- Halogen free materials for safer indoor air quality
- IP20 rated for protection against solid objects over 12mm
- IK04 impact resistance rating
- Operating temperature range 5-45°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Residential: Telephone and data connection points in homes
- Commercial: Office telephone and data socket installations
- General: Suitable for modular domestic switching device setups
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce harmful emissions in case of fire
- Durable design reduces need for frequent replacements
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Telephone Socket RJ12 6 Contacts 2 Modules Champagne is available for immediate purchase, ideal for residential and commercial telephone and data socket installations.
