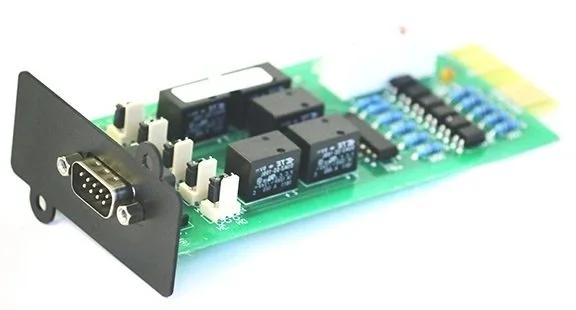

AS400 Relay Communication Card for UPS Chase Power CP2084

BRAND: Chase Power
SKU: CP2084
$443.10 List price: $664.60
+ −
30 Days Return Electricians Unlock Trade Access
Chase Power AS400 dry-contact relay card for legacy/industrial signalling from a compatible Chase Power UPS.

Alternatively Known As: AS400 Relay Card, UPS Dry-Contact Card, UPS Relay Communication Card, AS400 Long Card

Technical Specifications
  • Compatibility: Chase Power CP2084-compatible UPS intelligent slot
  • Card Type: AS400 long card
  • Interface: Dry-contact relay outputs for UPS status signalling
  • Signalling: Potential-free contacts for external monitoring, alarms or control systems
  • Typical Applications: Industrial control, building management systems and legacy AS400 monitoring
  • Installation: Plug-in communication card for a compatible UPS communication bay
  • Physical Format: Long UPS communication-card format
  • Dimensions Basis: Approximate dimensions estimated from comparable long UPS communication cards; verify before installation
  • Relay Contact Rating: Not published by Chase Power for this model; do not exceed the UPS manufacturer's specified limits
  • Dimensions (H x L x W): 25mm x 160mm x 100mm
  • Weight: 0.2 kg
Key Features
  • Provides dry-contact relay communication from a compatible Chase Power UPS
  • Supports legacy AS400 and industrial signalling applications
  • Suitable for connection to alarm panels, BMS, SCADA or external monitoring equipment
  • Designed for installation in the UPS intelligent communication slot
  • Allows UPS operating and alarm conditions to be monitored without network connectivity
  • Compatible only with supported Chase Power UPS models and slot hardware
Professional Installation Requirements
  • Installation should be performed by a suitably qualified UPS or electrical technician. Isolate the UPS or follow the manufacturer's approved hot-plug procedure, confirm compatibility with the CP2084 UPS, and complete all external signalling wiring in accordance with applicable electrical requirements.
Applications
  • UPS fault and alarm monitoring
  • Industrial control and automation systems
  • Building management systems
  • Legacy AS400 computer and server signalling
  • External alarm panels and remote status indication
  • Telecommunications and critical-power installations
Standards & Compliance
  • AS 62040.1.2 may apply to the associated UPS installation where the UPS is installed in a restricted-access location; Chase Power does not publish a separate standards declaration for the CP2084 relay card.
  • IEC/EN 62040 is identified by Chase Power for compatible UPS systems; card-specific conformity has not been separately published.
Environmental Benefits
  • Extends the useful life of compatible UPS systems by adding legacy dry-contact monitoring without replacing the complete UPS
  • Small plug-in electronic assembly uses fewer materials than a complete communications-system replacement
  • Supports monitoring of UPS operating conditions, helping reduce avoidable equipment downtime and premature replacement
Warranty Information

Chase Power publishes general UPS warranty support but no specific warranty duration or separate warranty statement for the CP2084 AS400 relay card. Warranty coverage should be confirmed with Chase Power or the authorised distributor before purchase.

Available Now

Available through Chase Power and authorised Australian distributors, subject to compatibility and legacy-product availability.
