Trade Discount 33%

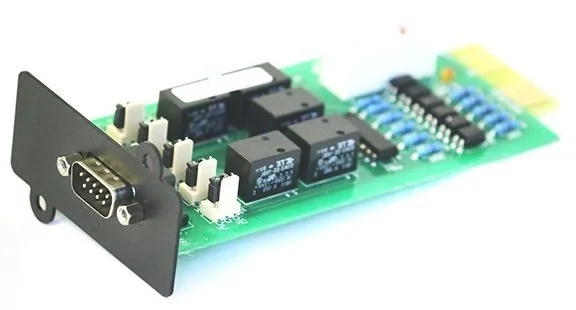

AS400 Relay Communication Card for UPS Chase Power CP2257
Chase Power AS400 dry-contact relay card for legacy/industrial signalling from a compatible Chase Power UPS.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AS400 Relay Card, UPS Dry-Contact Card, UPS Alarm Relay Card, Chase Power AS400 Long Card
Technical Specifications
- Card Type: AS400 dry-contact relay communication card
- Interface: Potential-free relay contacts for external monitoring and control systems
- Compatibility: Designed for compatible Chase Power UPS communication slots; verify UPS model before purchase
- Signalling: UPS status and alarm indication via relay outputs
- Installation Format: Internal UPS communication or intelligent expansion slot
- Application: Legacy AS/400 and industrial signalling systems
- Certification: Standalone card certification not separately published
- Dimensions (H x L x W): 25mm x 160mm x 100mm
- Weight: 0.15 kg
Key Features
- Provides dry-contact relay signalling from a compatible Chase Power UPS
- Supports connection to building management, industrial control and legacy AS/400 monitoring systems
- Allows UPS alarms and operating states to be monitored independently of network software
- Designed for installation in compatible Chase Power UPS communication slots
- Suitable for applications requiring simple, deterministic relay-based status signals
- Proprietary accessory; compatibility should be confirmed before ordering
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical or UPS technician. Isolate the UPS and follow the applicable Chase Power installation instructions before fitting the card. External relay wiring must maintain suitable segregation and comply with AS/NZS 3000 where applicable.
Applications
- UPS alarm and status monitoring
- Legacy AS/400 computer-room signalling
- Building management systems
- Industrial automation and control panels
- Data centre infrastructure monitoring
- Telecommunications and critical-power installations
Standards & Compliance
- AS/NZS 62040.1: relevant to the safety requirements of the compatible uninterruptible power supply system; standalone card compliance is not separately published
- AS/NZS 3000: applicable to installation, wiring, segregation and termination of connected electrical circuits where relevant
Environmental Benefits
- Extends the functional life of compatible UPS equipment by supporting continued use with legacy and industrial monitoring systems
- Dry-contact signalling can integrate with existing control infrastructure without requiring replacement network hardware
- Small electronic accessory with low material use compared with replacing a complete UPS monitoring system
Warranty Information
Warranty is subject to Chase Power's current warranty terms for UPS accessories. Chase Power states that its UPS products are supplied with a warranty matching or bettering comparable brands; confirm the specific period and coverage with the authorised distributor.
Available Now
Available through Chase Power and authorised Australian electrical, UPS and industrial power distributors, subject to compatibility and distributor stock.
