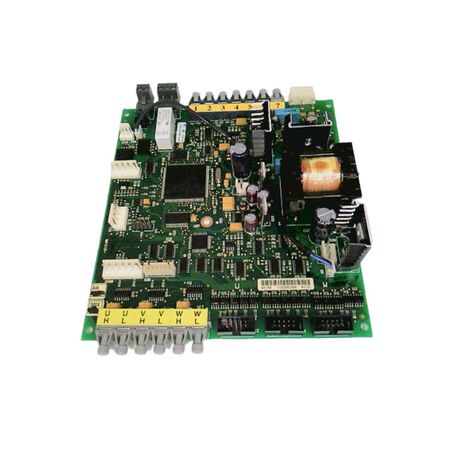

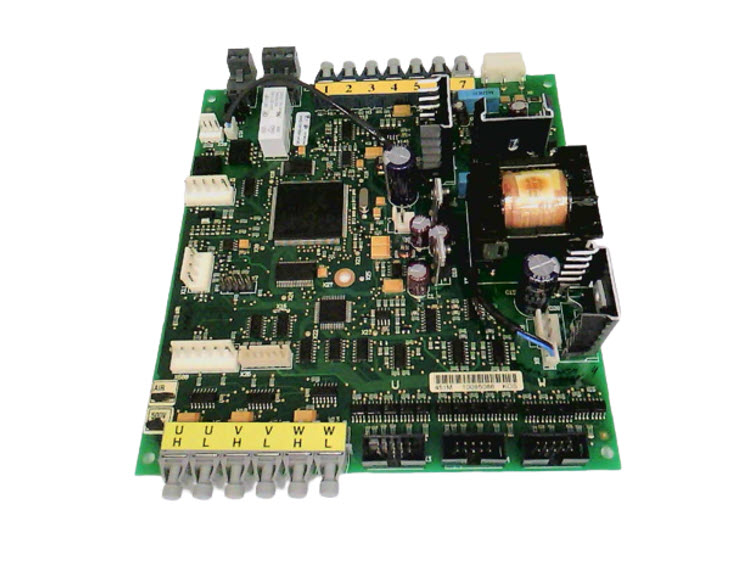

Product Name/Title: Allen-Bradley SKH1ASICBDD500 ASIC Board for PowerFlex 700H and 700S Drives
Brand: Allen-Bradley
SKU: SKH1ASICBDD500
Alternatively Known As: ASIC Board for PowerFlex 700H, ASIC Board for PowerFlex 700S, PowerFlex 700 Drive PCB, High Horsepower Drive Board
Technical Specifications
- Voltage Rating: 400/480 VAC
- Current Rating: 500 Amps
- Compatible with PowerFlex 700H and 700S drives
- Conformal coated PCB for enhanced durability
- Mountable design for secure installation
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Conformal coated for protection against environmental factors
- Designed specifically for 400/480 VAC, 500 amps PowerFlex drives
- Mountable PCB board for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with PowerFlex drives and electrical safety standards.
Applications
- Industrial motor drives
- High horsepower applications
- PowerFlex 700H and 700S variable frequency drives
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Conformal coating extends board life reducing electronic waste
- Supports energy-efficient motor control reducing overall power consumption
Warranty Information
Includes Radwell 2-year warranty; factory warranty does not apply.
Available Now
The Allen-Bradley SKH1ASICBDD500 ASIC Board is available for immediate purchase, ideal for industrial motor drive maintenance and upgrades.
