Aspen Boiler Pump-Hi Capacity | Max Flow 550L/h | IP24 Rated | Low Noise 44 dB(A) | by Aspen Pumps

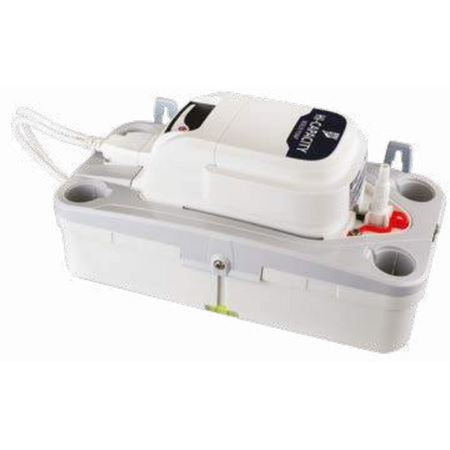

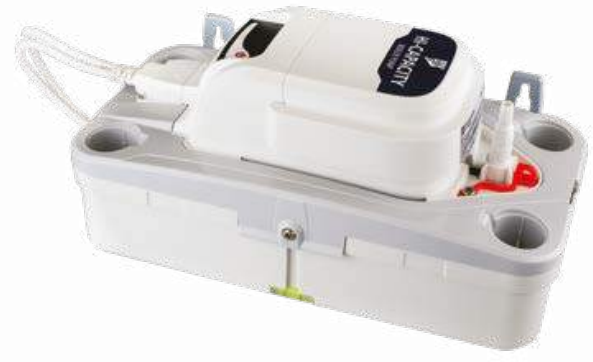

The Aspen Boiler Pump-Hi Capacity is designed for efficient condensate removal in commercial and larger domestic boiler systems. With a maximum flow rate of 550L/h and an IP24 rating for protection against splashing water, this pump ensures reliable operation. Its low noise level of 44 dB(A) makes it ideal for noise-sensitive environments, while the easy access tank simplifies maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aspen Boiler Pump-Hi Capacity | Max Flow 550L/h | IP24 Rated | Low Noise 44 dB(A) | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP3356
Alternatively Known As: High Capacity Boiler Condensate Pump, Aspen Condensate Removal Pump, Commercial Boiler Pump
Technical Specifications
- Power supply: 230 VAC, 0.8A, 50Hz
- Max flow: 550L/h at 0m head
- Max recommended head: 5m
- Tank capacity: 1.7L
- Max unit output: 200kW / 682,000 Btu/h
- Max water temperature: 60°C / 140°F
- Inlet/outlet sizes: 21-27mm inlet, 6-10mm outlet
- IP Protection: IP24
- Safety switch: 3.0A normally closed
- Thermal protection: Yes
- Noise level: 44 dB(A) at 1m
- Rated non-continuous
- Class I appliance
- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 2.5 kg
Key Features
- Easy access tank for maintenance
- Twist & click non-return outlet barb
- Built-in spirit level for accurate installation
- Plug & play design for quick setup
- High capacity pump suitable for up to 200kW / 682,000 Btu/h boilers
- Max flow rate of 550L/h at 0m head
- Max recommended head of 5m
- Tank capacity of 1.7L
- Low noise level at 44 dB(A) @ 1m
- IP24 rated for protection against splashing water
- Safety switch 3.0A normally closed
- Thermal protection included
Professional Installation Requirements
- Professional installation by a licensed plumber or HVAC technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Commercial gas and oil fired condensing boilers
- Larger domestic boiler systems requiring high capacity condensate removal
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient condensate removal helps maintain boiler efficiency and reduces energy waste
- Low noise operation minimizes noise pollution
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Boiler Pump-Hi Capacity is available now for immediate purchase. Ideal for commercial and larger domestic condensing boiler applications requiring efficient condensate removal.
