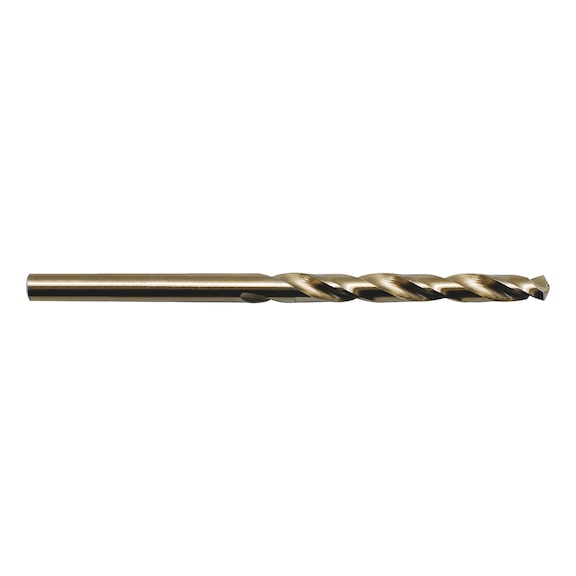

Assembly Drill Bit 2.0mm | HSCo Material | Self-Centering Design | Vaporised Surface | by Wurth
The 2.0mm assembly drill bit is designed for efficient drilling in stainless and heat-resistant steels. With a self-centering design and vaporised surface, it ensures quick and precise drilling. Ideal for construction and assembly applications, this drill bit features web thinning for reduced friction and excellent chip removal, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Assembly Drill Bit 2.0mm | HSCo Material | Self-Centering Design | Vaporised Surface | by Wurth
Brand: Wurth
SKU: 617400200
Alternatively Known As: Assembly drill bit, Stainless steel drill, Heat-resistant steel drill, HSCo drill bit
Technical Specifications
- Material to be processed: Stainless steel, Steel
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 2.0 mm
- Length (l1): 49 mm
- Chip flute length (l2): 24 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSCo
- Angle of the tip: 130 Degree
- Service life (points system): 3 of 4 points
- Drilling speed (points system): 2 of 4 points
- Bore hole quality (points system): 2 of 4 points
- Versatility (points system): 3 of 4 points
- Drilling behaviour (points system): 3 of 4 points
- Suitable for drill (points system): 2 of 4 points
- Suitable for cordless drills (points system): 2 of 4 points
- Suitable for upright drilling machine (points system): 1 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 2mm x 49mm x 2mm
- Weight: 0.1 kg
Key Features
- Web thinning reduces friction and feed force during drilling
- Sturdy point grinding with short working length for quick drilling
- Highly efficient chip removal
- Self-centering design
- Good cutting performance
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills by trained personnel.
Applications
- Quick working in stainless steel and heat-resistant steels
- General applications in steel up to 1,000 N/mm² strength
- Suitable for cast iron drilling
- Use in construction sites and assembly work
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient chip removal reduces waste and improves drilling efficiency
- Durable construction extends tool life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth 617400200 assembly drill is available for immediate purchase, ideal for machining and construction applications requiring efficient drilling in stainless and heat-resistant steels.
