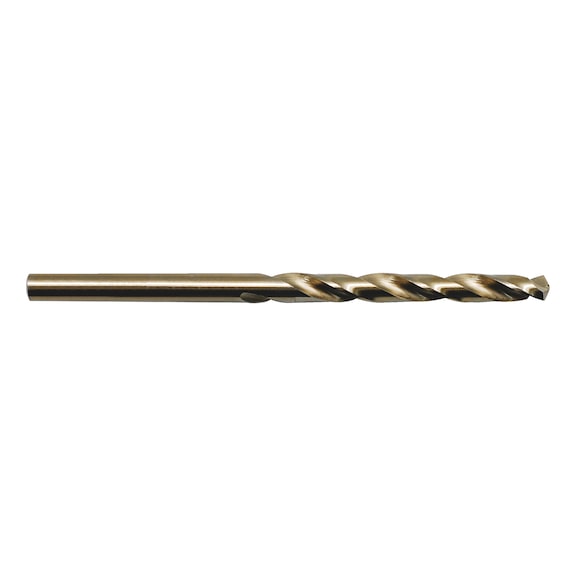

Assembly Drill Bit | HSCo Material | 1.0 mm Diameter | Self-Centering Design | by Wurth
The assembly drill bit is designed for efficient drilling in stainless steel and heat-resistant steels, featuring a 1.0 mm diameter and HSCo material for durability. With a self-centering design and web thinning to reduce friction, it's perfect for quick working in construction and assembly applications, ensuring high performance and chip removal efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Assembly Drill Bit | HSCo Material | 1.0 mm Diameter | Self-Centering Design | by Wurth
Brand: Wurth
SKU: 617400100
Alternatively Known As: Assembly drill bit, Stainless steel drill, Heat-resistant steel drill, HSCo drill bit
Technical Specifications
- Material to be processed: Stainless steel, Steel
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 1.0 mm
- Length (l1): 34 mm
- Chip flute length (l2): 12 mm
- Shank diameter: 1.0 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSCo
- Angle of the tip: 130 Degree
- Service life (points system): 3 of 4 points
- Drilling speed (points system): 2 of 4 points
- Bore hole quality (points system): 2 of 4 points
- Versatility (points system): 3 of 4 points
- Drilling behaviour (points system): 3 of 4 points
- Suitable for drill (points system): 2 of 4 points
- Suitable for cordless drills (points system): 2 of 4 points
- Suitable for upright drilling machine (points system): 1 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 34mm x 34mm x 1mm
- Weight: 0.1 kg
Key Features
- Web thinning reduces friction and feed force during drilling
- Sturdy point grinding with short working length for quick drilling
- Highly efficient chip removal
- Self-centering design
- Good cutting performance
Professional Installation Requirements
- No professional installation required; suitable for use with standard cordless and wired drills.
Applications
- Quick working in stainless steel and heat-resistant steels
- General applications in steel up to 1,000 N/mm² strength
- Suitable for cast iron drilling
- Use in construction sites and assembly with cordless and wired drills
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements
- Efficient chip removal minimizes waste and improves drilling efficiency
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth 617400100 assembly drill is available for immediate purchase, ideal for construction, assembly, and general machining applications.
