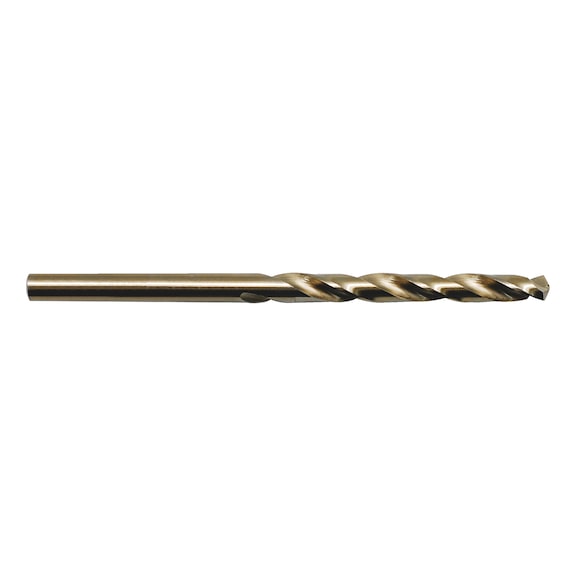

Assembly Drill Bit | HSCo Material | 1.5mm Diameter | Self-Centering Design | by Wurth
The assembly drill bit is designed for quick drilling in stainless steel and heat-resistant steels, featuring a 1.5mm diameter and HSCo material for durability. With a self-centering design and efficient chip removal, it's perfect for construction and assembly applications, ensuring high performance and reduced friction during use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Assembly Drill Bit | HSCo Material | 1.5mm Diameter | Self-Centering Design | by Wurth
Brand: Wurth
SKU: 617400150
Alternatively Known As: Assembly drill bit, Stainless steel drill, Heat-resistant steel drill, HSCo drill bit
Technical Specifications
- Material to be processed: Stainless steel, Steel
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 1.5 mm
- Length (l1): 40 mm
- Chip flute length (l2): 18 mm
- Shank style: Cylindrical
- Surface: Vaporised
- Cutting material: HSCo
- Angle of the tip: 130 Degree
- Service life: 3 of 4 points
- Drilling speed: 2 of 4 points
- Bore hole quality: 2 of 4 points
- Versatility: 3 of 4 points
- Drilling behaviour: 3 of 4 points
- Suitable for drill: 2 of 4 points
- Suitable for cordless drills: 2 of 4 points
- Suitable for upright drilling machine: 1 of 4 points
- Self-centring: Yes
- Dimensions (H x L x W): 1.5mm x 40mm x 1.5mm
- Weight: 0.1 kg
Key Features
- Web thinning reduces friction and feed force during drilling
- Sturdy point grinding with short working length for quick drilling
- Highly efficient chip removal
- Self-centering design
- Good cutting performance
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills by trained personnel.
Applications
- Quick drilling in stainless steel and heat-resistant steels
- General applications in steel up to 1,000 N/mm² strength
- Suitable for cast iron drilling
- Use in construction sites and assembly work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient chip removal reduces material waste
- Durable construction extends tool life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth 617400150 assembly drill is available now for immediate purchase. Ideal for construction, assembly, and machining applications requiring efficient drilling in stainless and heat-resistant steels.
