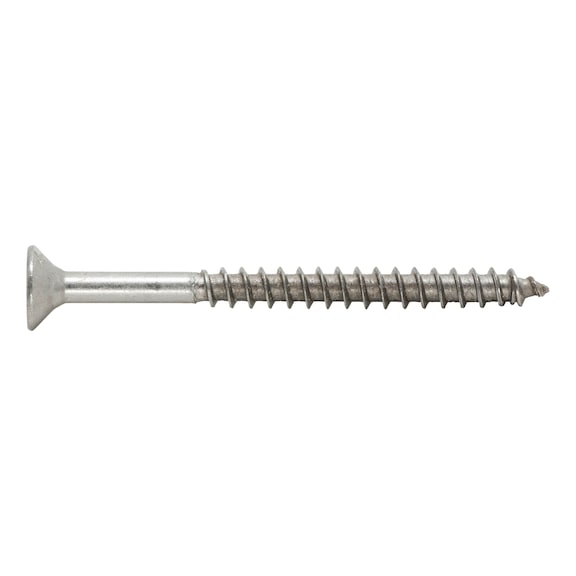

ASSY® 3.0 A2 Chipboard Screw | A2 Stainless Steel | Countersunk Head | AW Drive | @Pack of 100 | by Wurth
ASSY® 3.0 A2 Chipboard screws are designed for outdoor wood and timber fixing applications, featuring A2 stainless steel for superior corrosion resistance and a countersunk head for a flush finish. With an AW drive for optimal power transmission and a partial thread design, these screws ensure quick installation and strong hold in various materials, making them ideal for façades, terraces, and structural woodwork.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 A2 Chipboard Screw | A2 Stainless Steel | Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 180160100
Alternatively Known As: Chipboard screw, Stainless steel wood screw, Outdoor wood screw, A2 stainless steel screw, Countersunk head screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 100 mm
- Head type: Countersunk head
- Head diameter: 12 mm
- Head height: 4.1 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Thread length: 60 mm
- Core diameter: 3.9 mm
- Tip shape: Tip with ring thread
- Tip angle: 30 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Min/max screw-in angle: 0-90 degrees
- Product weight per item: 12.5 g
- Suitable materials: Board ply wood, wood, derived timber product, hardwood, LVL, softwood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.1mm x 100mm x 12mm
- Weight: 0.0125 kg
Key Features
- A2 stainless steel for corrosion resistance
- Partial thread with countersunk head
- AW drive for optimal power transmission
- Asymmetrical single-start thread for greater speed and traction
- Low screw-in torque and high over-turning force
- Ring thread reduces wood splitting and blow-outs
- Virtually no unscrewing of bit and no wobbling
- No damage to surface coating of screw
- Suitable for use in board ply wood, wood, derived timber products, hardwood, LVL, and softwood
Professional Installation Requirements
- Professional installation recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Wet areas
- Balcony
- Board walk
- Play equipment
- Outdoors
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Suitable for outdoor use reducing need for frequent replacements
Warranty Information
Comes with manufacturer warranty and ETA-11/0190 approval ensuring quality and compliance.
Available Now
Wurth ASSY® 3.0 A2 Chipboard Screw 100 PCS is available for immediate purchase, ideal for outdoor wood and timber fixing applications.
