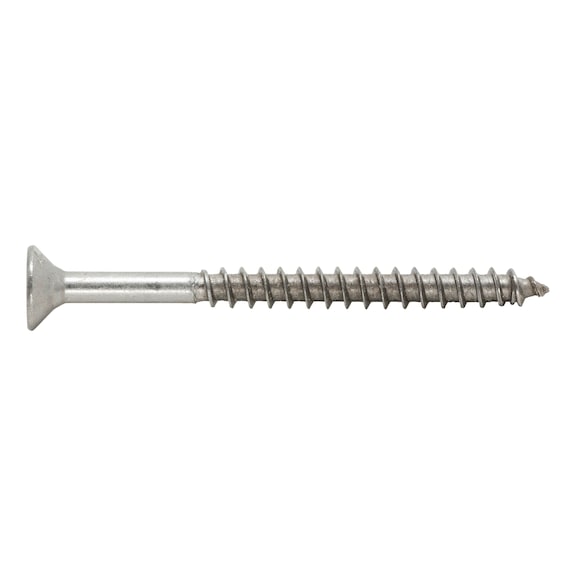

ASSY® 3.0 A2 Chipboard Screw | A2 Stainless Steel | Countersunk Head | AW Drive | @Pack of 100 | by Wurth
ASSY® 3.0 A2 Chipboard screws are designed for outdoor wood fixing, featuring A2 stainless steel for corrosion resistance and a countersunk head for a flush finish. Ideal for applications like fences, balconies, and structural woodwork, these screws ensure secure fastening with minimal wood splitting, making them perfect for professionals and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 A2 Chipboard Screw | A2 Stainless Steel | Countersunk Head | AW Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 180160140
Alternatively Known As: Chipboard screw, Stainless steel wood screw, Outdoor wood fixing screw, Countersunk head screw, AW drive screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 140 mm
- Head type: Countersunk head
- Head diameter: 12 mm
- Head height: 4.1 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Thread length: 70 mm
- Core diameter: 3.9 mm
- Tip shape: Tip with ring thread
- Tip angle: 30 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Min/max screw-in angle: 0-90 degrees
- Product weight per item: 17.4 g
- Suitable materials: Board ply wood, wood, derived timber product, hardwood, LVL, softwood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.1mm x 140mm x 12mm
- Weight: 0.0174 kg
Key Features
- A2 stainless steel for corrosion resistance
- Partial thread with countersunk head
- AW drive for more power and optimal force transmission
- Asymmetrical single-start thread for greater speed and traction
- Low screw-in torque and high over-turning force
- Ring thread reduces wood splitting and blow-outs
- Virtually no unscrewing of bit and no wobbling
- No damage to surface coating of screw
- Suitable for use in board ply wood, wood, derived timber products, hardwood, LVL, and softwood
Professional Installation Requirements
- Professional installation recommended to ensure correct screw selection and secure fixing in structural and outdoor applications.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Wet areas
- Balcony
- Board walk
- Play equipment
- Outdoors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Screw quality and performance guaranteed as per ETA-11/0190 approval.
Available Now
Wurth ASSY® 3.0 A2 Chipboard Screw 100 PCS is available now for immediate purchase. Ideal for outdoor wood fixing applications including fences, balconies, and play equipment.
