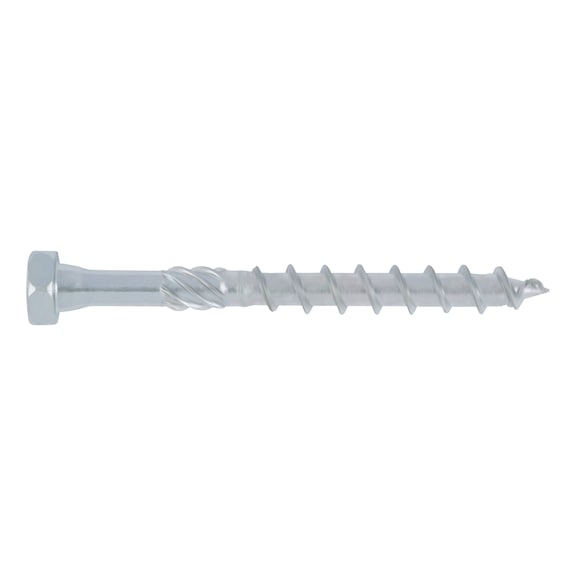

ASSY® 3.0 Combination Timber Screw | Hexagon Head | Glide-Coated Coarse Thread | 75 PCS | by Wurth
ASSY® 3.0 combination timber screw features a hexagon head and glide-coated coarse thread, making it ideal for structural woodwork and timber panel construction. Designed for professional carpenters, this screw minimizes splitting and reduces installation time, ensuring a secure fit in metal connections. Perfect for various timber materials, it combines efficiency with durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 Combination Timber Screw | Hexagon Head | Glide-Coated Coarse Thread | 75 PCS | by Wurth
Brand: Wurth
SKU: 184208120
Alternatively Known As: Timber screw, Wood screw, Structural wood screw, ASSY 3.0 screw, Combination screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 120 mm
- Head type: Hexagon head
- Head height: 4.5 mm
- External drive: WS12
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Coarse thread
- Thread length: 80 mm
- Material: Hardened steel
- Surface: Zinc plated, blue passivated
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Core diameter: 5.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 degrees
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.5mm x 120mm x 8mm
- Weight: 0.15 kg
Key Features
- Combined hexagon head with AW drive and reinforced shaft neck for high power transmission and perfect fit in metal connections.
- Glide-coated asymmetrical coarse thread with mating thread and burr reduces screw-in time by 30% and lowers splitting tendency.
- Plastic non-friction coating reduces friction for easier screw-in.
- End mill section reduces screw-in torque by 20%.
- Tip with counter thread reduces risk of splitting.
Professional Installation Requirements
- Professional installation by qualified carpenters or construction professionals is recommended to ensure structural integrity and compliance with building codes.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Metal wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces material waste by minimizing splitting during installation.
- Efficient screw-in design reduces installation time and energy use.
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
Wurth ASSY® 3.0 Combination Timber Screw 75 PCS is available for immediate purchase, ideal for timber construction and carpentry applications.
