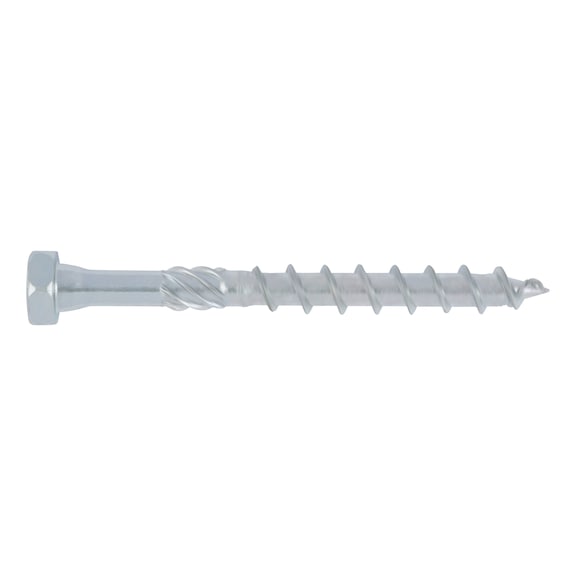

ASSY® 3.0 Combination Timber Screw | Hexagon Head | Glide-Coated Coarse Thread | Zinc Plated | @Pack of 75 | by Wurth
ASSY® 3.0 combination timber screw is designed for structural woodwork, featuring a hexagon head and glide-coated coarse thread that reduces screw-in time by 30%. Ideal for timber panel construction and metal wood connections, this screw ensures high power transmission and minimizes splitting risk, making it perfect for professional carpenters and tradespeople.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 Combination Timber Screw | Hexagon Head | Glide-Coated Coarse Thread | Zinc Plated | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 184208180
Alternatively Known As: Timber screw, Wood screw, Structural wood screw, ASSY 3.0 screw, Combination screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 180 mm
- Head type: Hexagon head
- Head height: 4.5 mm
- External drive: WS12
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Coarse thread
- Thread length: 80 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Core diameter: 5.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 Degree
- Max screw-in angle: 90 Degree
- Min screw-in angle: 0 Degree
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.5mm x 180mm x 8mm
- Weight: 0.15 kg
Key Features
- Combined hexagon head with AW drive and reinforced shaft neck for high power transmission and perfect fit in metal connections.
- Glide-coated asymmetrical coarse thread with mating thread and burr reduces screw-in time by 30% and lowers splitting tendency.
- Plastic non-friction coating reduces friction for easier screw-in.
- End mill section reduces screw-in torque by 20%.
- Tip with counter thread reduces risk of splitting.
- Steel, zinc-plated, blue passivated, partial thread.
Professional Installation Requirements
- Professional installation by a qualified carpenter or tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Metal wood connections
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable zinc plating extends product life reducing waste.
Warranty Information
Wurth offers a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
Wurth ASSY® 3.0 Combination Timber Screw 75 PCS is available for immediate purchase, ideal for timber construction and carpentry applications.
