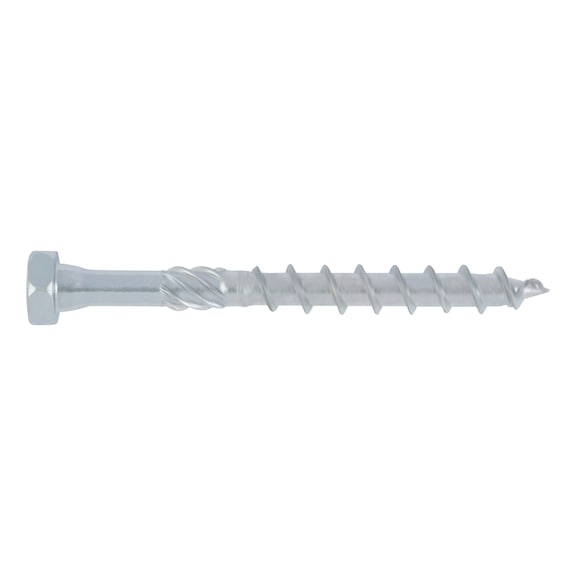

ASSY® 3.0 Combination Timber Screw | Hexagon Head | Glide-Coated Coarse Thread | Zinc Plated | @Pack of 75 | by Wurth
ASSY® 3.0 combination timber screw is designed for structural woodwork, featuring a hexagon head and glide-coated coarse thread that reduces screw-in time by 30%. Ideal for timber construction and carpentry applications, this screw ensures a perfect fit in metal connections and minimizes splitting risk, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 Combination Timber Screw | Hexagon Head | Glide-Coated Coarse Thread | Zinc Plated | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 184208240
Alternatively Known As: Timber screw, Wood screw, Structural wood screw, ASSY 3.0 screw, Combination timber screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 240 mm
- Head type: Hexagon head
- Head height: 4.5 mm
- External drive: WS12
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Coarse thread
- Thread length: 100 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Core diameter: 5.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 Degree
- Max screw-in angle: 90 Degree
- Min screw-in angle: 0 Degree
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.5mm x 240mm x 8mm
- Weight: 0.3 kg
Key Features
- Combined hexagon head with AW drive and reinforced shaft neck for high power transmission and perfect fit in metal connections.
- Glide-coated asymmetrical coarse thread with mating thread and burr reduces screw-in time by 30% and lowers splitting tendency.
- Plastic non-friction coating reduces friction for easier screw-in.
- End mill section reduces screw-in torque by 20%.
- Tip with counter thread reduces risk of splitting.
- Steel, zinc-plated, blue passivated, partial thread.
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure structural integrity and compliance with building codes.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Metal wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable zinc plating extends product life reducing waste.
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 3.0 Combination Timber Screw 75 PCS is available for immediate purchase, ideal for timber construction and carpentry applications.
