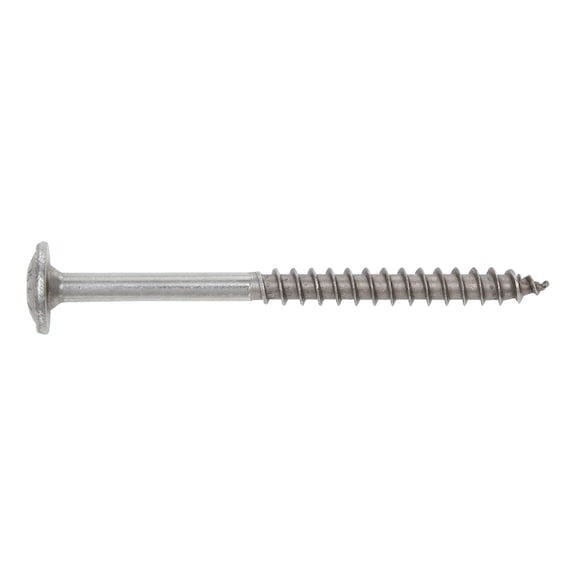

ASSY® 3.0 SK A2 Timber Screw | Corrosion Resistant | AW Drive | 30° Tip Angle | @Pack of 100 | by Wurth
ASSY® 3.0 SK A2 timber screws are designed for outdoor and wet area applications, featuring a corrosion-resistant A2 stainless steel construction and an AW drive for optimal power transmission. With a unique ring thread that minimizes wood splitting, these screws ensure high penetration resistance and are perfect for timber construction, balcony, and bridge projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 SK A2 Timber Screw | Corrosion Resistant | AW Drive | 30° Tip Angle | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 181806120
Alternatively Known As: Stainless Steel Timber Screw, A2 Wood Screw, Outdoor Wood Screw, Corrosion Resistant Screw, Wurth ASSY Screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 120 mm
- Thread length: 70 mm
- Head type: Round washer head
- Head diameter: 14 mm
- Head height: 3 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Single start thread
- Core diameter: 3.9 mm
- Shape of tip: Tip with ring thread
- Angle of the tip: 30 degrees
- Material: Stainless steel A2
- Surface: Plain
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 120mm x 14mm
- Weight: 0.15 kg
Key Features
- Large washer head and partial thread designed for joining two components outdoors and in wet rooms.
- Made from corrosion-resistant, austenitic A2 stainless steel (1.4301; 1.4567).
- AW drive for optimal power transmission and almost no cam-out.
- Ring thread in tip area connects the wood instead of splitting it, reducing splitting forces and blow-outs.
- High penetration resistance and consolidation effect.
- Asymmetrical single thread for faster screwing speed and low screw-in torque.
- Tip with 30° angle for very precise positioning.
- End milling cutter included for easier screw-in.
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Outdoors
- Balcony construction
- Bridge construction
- Wet areas
- Timber construction
- Structural woodwork
- Solar collector
- Play equipment
- Board walk
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life, reducing the need for frequent replacements.
- Corrosion resistance minimizes environmental impact by preventing rust and degradation.
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth ASSY® 3.0 SK A2 Timber Screw 100 PCS is available now for immediate purchase. Ideal for outdoor timber construction and wet area applications.
