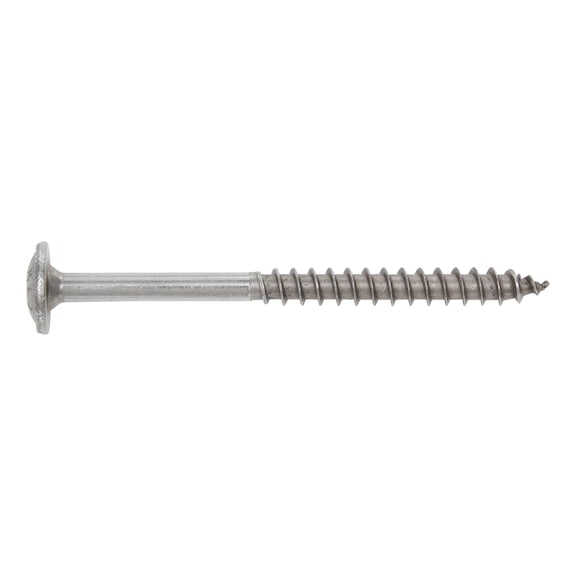

ASSY® 3.0 SK A2 Timber Screw | Corrosion-Resistant A2 Stainless Steel | Large Washer Head | AW Drive | @Pack of 100 | by Wurth
ASSY® 3.0 SK A2 timber screws are designed for outdoor and wet area applications, featuring a corrosion-resistant A2 stainless steel construction and a large washer head for secure fastening. Ideal for professionals in timber construction, these screws offer high penetration resistance and a precise 30° tip angle for easy installation, ensuring structural integrity in various projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 SK A2 Timber Screw | Corrosion-Resistant A2 Stainless Steel | Large Washer Head | AW Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 18180680
Alternatively Known As: Stainless Steel Timber Screw, A2 Wood Screw, Outdoor Wood Screw, Corrosion Resistant Timber Screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 80 mm
- Thread length: 50 mm
- Head type: Round washer head
- Head diameter: 14 mm
- Head height: 3 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Single start thread
- Core diameter: 3.9 mm
- Shape of tip: Tip with ring thread
- Angle of the tip: 30 degrees
- Material: Stainless steel A2
- Surface: Plain
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), wood, derived timber product, hardwood, LVL, softwood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 80mm x 14mm
- Weight: 0.05 kg
Key Features
- Large washer head and partial thread designed for joining two components outdoors and in wet rooms.
- Made from corrosion-resistant austenitic A2 stainless steel (1.4301; 1.4567).
- AW drive for optimal power transmission and almost no cam-out.
- Ring thread in tip area connects the wood instead of splitting it.
- High penetration resistance and consolidation effect.
- Asymmetrical single thread for faster speed and low screw-in torque.
- Tip with 30° angle for very precise positioning.
- End milling cutter included for easier screw-in.
- Suitable for use in board ply wood, wood, derived timber products, hardwood, LVL, and softwood.
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct application and structural integrity.
Applications
- Outdoors
- Balcony construction
- Bridge construction
- Wet areas
- Timber construction
- Structural woodwork
- Solar collector
- Play equipment
- Board walk
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life, reducing the need for frequent replacements.
- RoHS-compliant, ensuring no harmful substances are used in manufacturing.
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth ASSY® 3.0 SK A2 Timber Screw 100 PCS is available now for immediate purchase. Ideal for outdoor timber construction and wet area applications.
