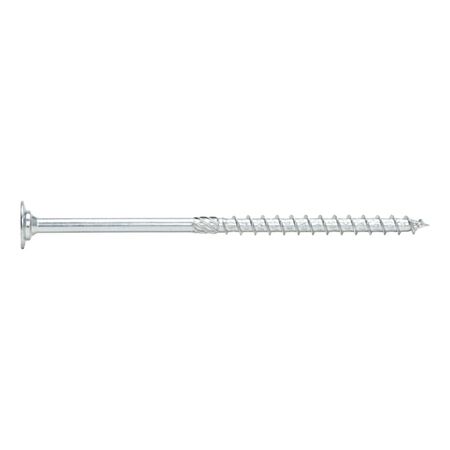

ASSY 3.0 SKII Timber Screw | 8mm Diameter | Washer Head II | Coarse Thread | @Pack of 50 | by Wurth
The ASSY 3.0 SKII timber screw features an 8mm nominal diameter and a washer head II design, making it ideal for structural woodwork and timber construction. Crafted from hardened steel with a corrosion-resistant zinc-plated surface, this screw ensures durability and reliability. Its asymmetric coarse thread allows for faster screwing, reducing working time by 30%, while the 34° tip provides precise positioning, minimizing wood splitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY 3.0 SKII Timber Screw | 8mm Diameter | Washer Head II | Coarse Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 184808014
Alternatively Known As: Timber screw, Wood screw, Structural wood screw, ASSY SKII screw, Washer head timber screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 140 mm
- Thread length: 80 mm
- Head type: Washer head II
- Head diameter: 18.4 mm
- Head height: 2.3 mm
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 5.3 mm
- Shape of tip: Tip with counter thread
- Angle of the tip: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Additional accessory: Washer for ASSY 3.0 SKII
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 140mm x 18mm
- Weight: 0.15 kg
Key Features
- Smaller, flat, graduated washer head designed for universal use in timber construction and carpentry.
- Hardened steel with blue passivated (A3K) surface for corrosion resistance.
- AW drive for optimum power transmission and fast location with no wobbling.
- End mill reduces screw-in and countersinking torque by approx. 20%, extending tool and battery life.
- Asymmetric coarse thread for faster screwing and reduced working time by 30%.
- 34° tip for very precise positioning and minimal splitting forces.
- Partial thread with mating thread reduces wood splitting and blow-outs.
- Screw head is flush with wood surface for effective consolidation and countersinking.
Professional Installation Requirements
- Professional installation by a qualified carpenter or builder is recommended to ensure proper structural integrity and compliance with building codes.
Applications
- Structural woodwork
- On rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Roof
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable hardened steel construction extends product life reducing waste.
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth ASSY 3.0 SKII Timber Screw 50 PCS is available now for immediate purchase. Ideal for timber construction and carpentry applications.
