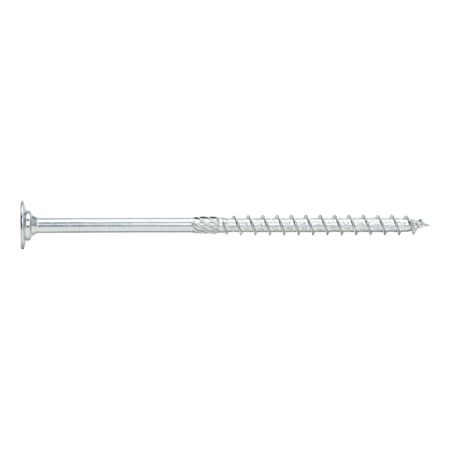

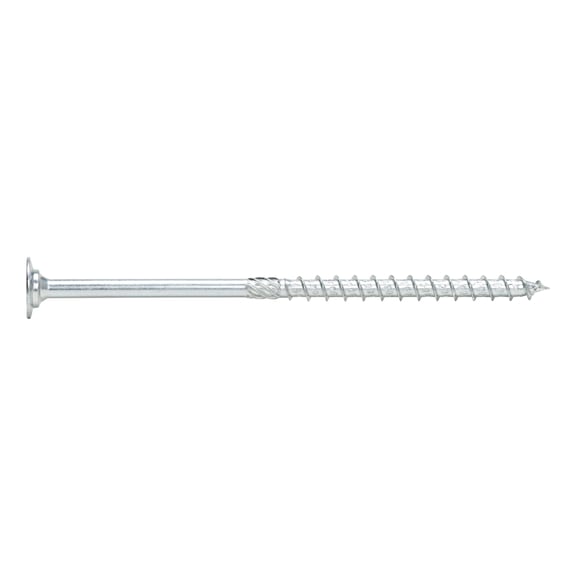

ASSY 3.0 SKII Timber Screw | 8mm Diameter | Washer Head II | Corrosion Resistant | @Pack of 50 | by Wurth
The ASSY 3.0 SKII timber screw features an 8mm nominal diameter and a washer head II design, making it ideal for structural woodwork and carpentry. Crafted from hardened steel with a blue passivated surface for corrosion resistance, this screw ensures durability and reliability in timber construction. Its asymmetric coarse thread allows for faster screwing, reducing working time by 30%, while the 34° tip minimizes splitting forces for precise positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY 3.0 SKII Timber Screw | 8mm Diameter | Washer Head II | Corrosion Resistant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 184808010
Alternatively Known As: Timber screw, Wood screw, Structural wood screw, Washer head screw, Blue passivated screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 100 mm
- Thread length: 60 mm
- Head type: Washer head II
- Head diameter: 18.4 mm
- Head height: 2.3 mm
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 5.3 mm
- Shape of tip: Tip with counter thread
- Angle of the tip: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Additional accessory: Washer for ASSY 3.0 SKII
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 100mm x 18mm
- Weight: 0.15 kg
Key Features
- Smaller, flat, graduated washer head designed for universal use in timber construction and carpentry.
- Hardened steel with blue passivated (A3K) surface for corrosion resistance.
- AW drive for optimum power transmission and fast location without wobbling.
- End mill reduces screw-in and countersinking torque by approximately 20%, extending tool and battery life.
- Asymmetric coarse thread for faster screwing and reduced working time by 30%.
- 34° tip for very precise positioning and minimal splitting forces.
- Partial thread with mating thread reduces wood splitting and blow-outs.
- Washer head transmits high forces and can be countersunk flush with wood surface.
Professional Installation Requirements
- Professional installation by a qualified carpenter or builder is recommended to ensure structural integrity and compliance with building codes.
Applications
- Structural woodwork
- On rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Roof
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable hardened steel construction extends product life reducing waste.
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth ASSY 3.0 SKII Timber Screw 50 PCS is available now for immediate purchase. Ideal for timber construction, carpentry, and structural wood applications.
