ASSY® 3.0 Zinc-Plated Yellow Chipboard Screw | Corrosion Resistant | Countersunk Head | AW40 Drive | @Pack of 50 | by Wurth

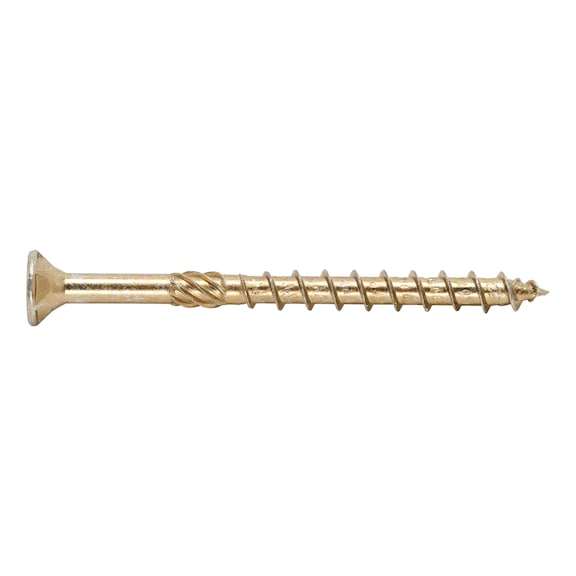

ASSY® 3.0 zinc-plated yellow chipboard screws are designed for reliable fastening in furniture construction and carpentry. With a corrosion-resistant zinc plating and a countersunk head, these screws minimize surface damage while providing a secure fit with their AW40 internal drive. Ideal for both solid wood and derived timber products, they ensure durability and efficiency in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 3.0 Zinc-Plated Yellow Chipboard Screw | Corrosion Resistant | Countersunk Head | AW40 Drive | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 170310120
Alternatively Known As: Yellow zinc chipboard screws, Wurth wood screws, ASSY 3.0 screws, Countersunk wood screws, AW drive screws
Technical Specifications
- Nominal diameter: 10 mm
- Length: 120 mm
- Thread length: 80 mm
- Head type: Countersunk with milling pockets
- Head diameter: 18.5 mm
- Head height: 5.5 mm
- Internal drive: AW40
- Thread type: Wood screw thread, partial coarse thread
- End milling cutter: Yes
- Core diameter: 6.3 mm
- Tip shape: Tip with counter thread, 34 degree angle
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Min/max screw-in angle: 0-90 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Additional accessory: Bit lock
- Screw requiring approval: Yes, ETA-11/0190
- Dimensions (H x L x W): 5.5mm x 120mm x 18.5mm
- Weight: 0.15 kg
Key Features
- Zinc-plated yellow hardened steel for corrosion resistance
- Partial coarse wood screw thread with asymmetric design for faster screwing
- Countersunk head with milling pockets to reduce surface damage
- AW40 internal drive for optimum power transmission and secure fit
- End milling cutter reduces screw-in force and protects tools
- Ring/mating thread reduces wood splitting and blow-outs
- Suitable for solid wood, laminated beams, CLT, timber veneer, OSB, chipboard
- Minimum damage to coated wood materials and less surface chips
- Approved with ETA-11/0190 for screw requiring approval
Professional Installation Requirements
- Recommended to be installed by professionals or experienced users to ensure proper use and compliance with structural requirements.
Applications
- Furniture construction
- Interior fittings
- Carpentry
- Rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Structural woodwork
- Universal use in wood and derived timber products
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Minimized wood splitting preserves timber integrity and reduces waste
Warranty Information
Warranty details available upon request from Wurth; product quality guaranteed.
Available Now
Wurth ASSY® 3.0 zinc-plated yellow chipboard screws 50 PCS are available for immediate purchase, ideal for furniture construction, carpentry, and timber applications.
