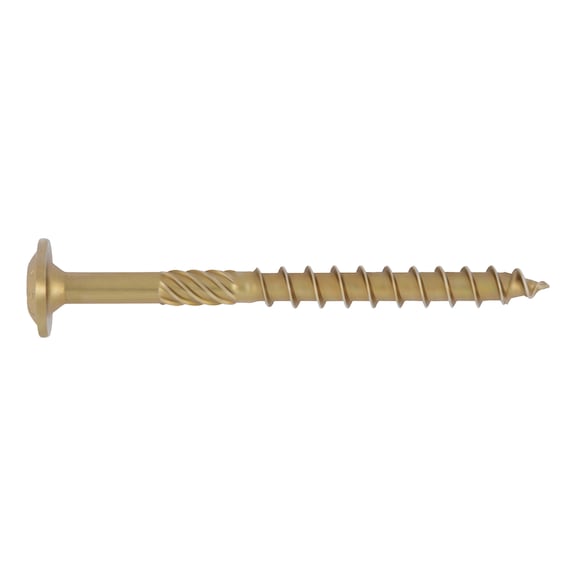

ASSY 30 SK Timber Screw | 10mm Diameter | 320mm Length | AW50 Drive | Yellow Zinc Plated | @Pack of 50 | by Wurth
The ASSY 30 SK timber screw is designed for woodworking and carpentry, featuring a 10mm diameter and 320mm length for robust applications. With a yellow zinc plated finish and AW50 internal drive, it ensures high penetration resistance and reduced wood splitting. Ideal for structural timber projects, this screw is perfect for professionals seeking reliable performance in staircase and modular construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY 30 SK Timber Screw | 10mm Diameter | 320mm Length | AW50 Drive | Yellow Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 184810320
Alternatively Known As: Timber screw, Wood screw, Structural timber screw, AW50 drive screw, Yellow zinc plated screw
Technical Specifications
- Nominal diameter: 10 mm
- Length: 320 mm
- Thread length: 120 mm
- Head type: Round washer head
- Head diameter: 25.2 mm
- Head height: 4.6 mm
- Internal drive: AW50
- Thread type: Wood screw thread
- Thread design: Partial coarse thread
- End milling cutter: Yes
- Core diameter: 6.3 mm
- Tip angle: 34 degrees with counter thread
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood, solid wood, derived timber products, hardwood, LVL, softwood
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- Dimensions (H x L x W): 5mm x 320mm x 25mm
- Weight: 0.5 kg
Key Features
- Large washer head suitable for woodworking and carpentry
- Hardened steel with zinc plated yellow coating
- Partial coarse wood screw thread with end milling cutter
- AW50 internal drive for optimum force transmission
- Counter thread tip reduces wood splitting and blow-outs
- High penetration resistance and fast secure location
- Reduction of screw-in torque by around 20% with end mill
- Suitable for solid wood, laminated beams, CLT, OSB, chipboard
- Bit lock accessory included
- ETA-11/0190 approval
Professional Installation Requirements
- Professional installation by qualified carpenters or construction professionals is recommended to ensure structural integrity and compliance with building codes.
Applications
- Staircase construction
- Modular construction
- Timber and passive house construction
- Rafter insulation
- Element construction
- Timber construction
- Structural woodwork
- Rafter purlin connection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable hardened steel construction extends product life reducing waste
- Zinc plating provides corrosion resistance reducing need for replacements
- Efficient screw design reduces installation time and energy use
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY 30 SK timber screw is available for immediate purchase, ideal for timber construction and woodworking applications.
