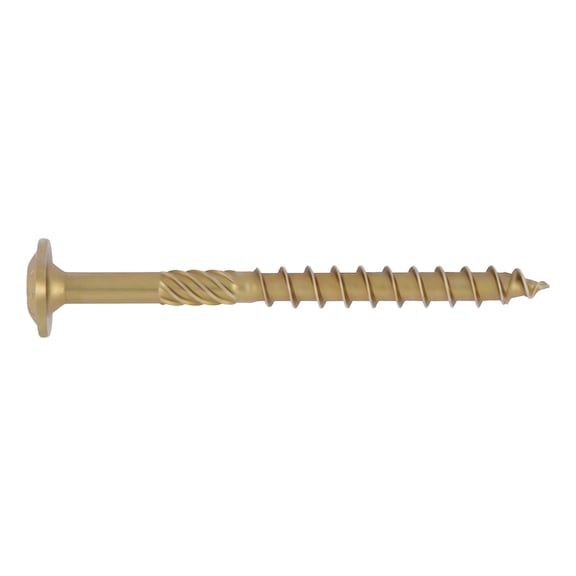

ASSY 30 SK Timber Screw | 6mm Diameter | 100mm Length | Zinc Plated | @Pack of 100 | by Wurth
The ASSY 30 SK timber screw is designed for staircase construction and woodworking, featuring a 6mm diameter and 100mm length. Made from hardened steel with a zinc plated finish, it ensures durability and corrosion resistance. Ideal for professional carpenters and builders, this screw offers a partial coarse thread with a counter thread to prevent wood splitting, making it perfect for various timber applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY 30 SK Timber Screw | 6mm Diameter | 100mm Length | Zinc Plated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 184806100
Alternatively Known As: Timber screw, Wood screw, AW30 timber screw, Zinc plated wood screw, Staircase construction screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 100 mm
- Thread length: 60 mm
- Head type: Round washer head
- Head diameter: 14 mm
- Head height: 3 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 3.9 mm
- Shape of tip: Tip with counter thread
- Angle of the tip: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- Dimensions (H x L x W): 3mm x 100mm x 14mm
- Weight: 0.05 kg
Key Features
- Large washer head suitable for staircase construction and woodworking
- Hardened steel with zinc plated yellow coating
- Partial coarse wood screw thread with counter thread to connect wood without splitting
- AW drive for optimum force transmission and fast, secure screw location
- End mill reduces screw-in and countersinking torque by around 20%
- Asymmetric coarse thread for faster screwing and lower torque
- 34° tip angle for very precise positioning and minimal splitting
- Bit lock accessory included
- Approval: ETA-11/0190
Professional Installation Requirements
- Professional installation by a qualified carpenter or builder is recommended to ensure proper fastening and structural integrity.
Applications
- Staircase construction
- Woodworking and carpentry
- Modular construction
- Timber and passive house construction
- On rafter insulation
- Element construction
- Timber construction
- Structural woodwork
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable hardened steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
- Efficient screw design reduces processing time and energy consumption during installation
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth ASSY 30 SK timber screw AW30 6x100mm is available for immediate purchase, ideal for timber construction, woodworking, and staircase applications.
