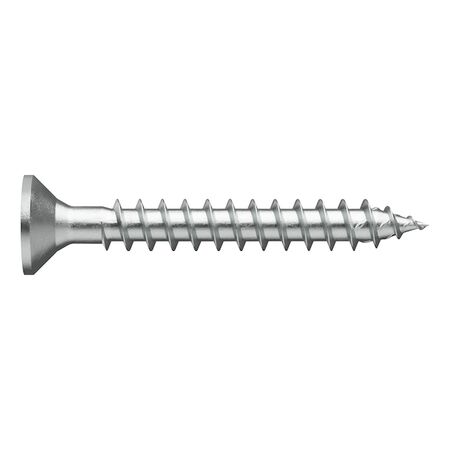

ASSY® 4 A2 CS Fittings Screw | A2 Stainless Steel | Full Thread Countersunk Head | 200 PCS | by Wurth
ASSY® 4 A2 CS fittings screws are crafted from high-quality A2 stainless steel, featuring a full thread design and countersunk head for optimal power transmission. Perfect for outdoor and indoor applications, these screws ensure secure fixing in wood and metal fittings, making them ideal for façades, terraces, and structural woodwork. With a smooth thread start and reduced splitting effect, they provide reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 25 mm
- Head type: Countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 22 mm
- Core diameter: 2.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Stainless steel A2
- Surface: Plain
- Min./max. screw-in angle: 0-90 degrees
- Product weight per item: 1.080 g
- Suitable materials: Wood, derived timber product, softwood, board plywood (BSP), hardwood, LVL
- Suitable machines: Würth BS 12-A Power
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 25mm x 7mm
- Weight: 0.00108 kg
Key Features
- Made of high-quality austenitic A2 stainless steel with countersunk head
- Full-thread wood screw thread design with single start thread
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Higher breaking torque and power transmission in hardwoods
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation reduces screw-in force
- Non-magnetic and non-rusting A2 stainless steel
- Suitable for outdoor areas exposed to weathering
Professional Installation Requirements
- Professional installation recommended to ensure correct screw selection and secure fixing in wood and metal fittings.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Wet areas
- Balcony
- Board walk
- Play equipment
- Outdoors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from corrosion-resistant stainless steel for long-lasting durability reducing replacement waste
- Suitable for outdoor use, minimizing environmental impact through extended product life
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 4 A2 CS stainless steel full thread countersunk head screws are available for immediate purchase. Ideal for outdoor and indoor wood fixing applications exposed to corrosion.
