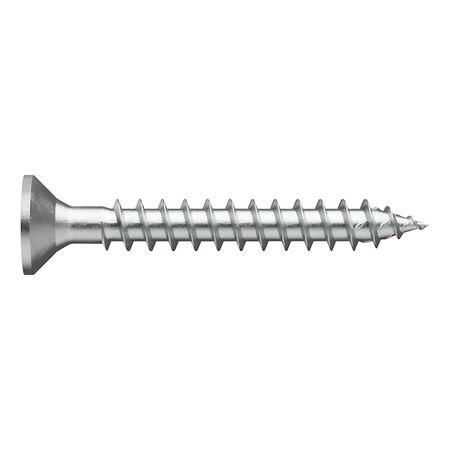

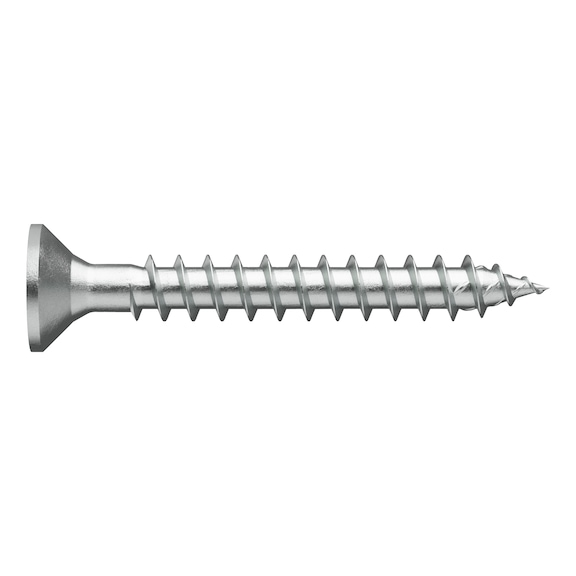

ASSY® 4 A2 CS Fittings Screw | A2 Stainless Steel | Full Thread Countersunk Head | 200 PCS | by Wurth
ASSY® 4 A2 CS fittings screws are crafted from high-quality A2 stainless steel, featuring a full thread design and countersunk head for optimal fastening. Ideal for outdoor applications and structural woodwork, these screws ensure durability and resistance to rust. With a smooth thread start and precise positioning, they provide reliable performance in various materials, making them perfect for façades, terraces, and more.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal diameter: 4 mm
- Length: 16 mm
- Head type: Countersunk head
- Head diameter: 8 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 12 mm
- Core diameter: 2.5 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Min/max screw-in angle: 45-90 degrees
- Suitable materials: Wood, derived timber product, softwood, board plywood (BSP), hardwood, LVL
- Suitable machines: Würth BS 12-A Power, Würth BS 14-A Combi
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 16mm x 4mm
- Weight: 0.00106 kg
Key Features
- Made of high-quality austenitic A2 stainless steel with countersunk head
- Full-thread wood screw thread design with single start thread
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Higher breaking torque and power transmission in hardwoods
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation reduces screw-in force
- Non-magnetic, non-rusting A2 stainless steel suitable for outdoor weathering
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially in structural woodwork and outdoor applications.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Wet areas
- Balcony
- Board walk
- Play equipment
- Outdoors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from corrosion-resistant stainless steel for long-lasting durability reducing replacement waste
- Suitable for outdoor use minimizing environmental impact from frequent repairs
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth ASSY® 4 A2 CS stainless steel screws are available for immediate purchase, ideal for outdoor wood fixing and structural applications.
