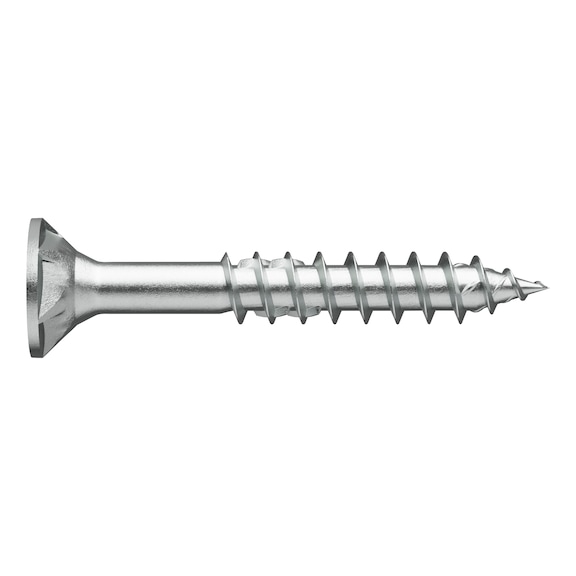

ASSY® 4 A2 CSMP Timber Screw | A2 Stainless Steel | Countersunk Milling Pocket Head | @Pack of 75 | by Wurth
ASSY® 4 A2 CSMP timber screws are crafted from high-quality A2 stainless steel, making them perfect for outdoor wood connections. With a countersunk milling pocket head and partial thread design, these screws ensure optimal power transmission and stability during installation. Ideal for structural woodwork and outdoor applications, they provide durability and resistance to corrosion, making them a reliable choice for both rural and urban environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 A2 CSMP Timber Screw | A2 Stainless Steel | Countersunk Milling Pocket Head | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 187480240
Alternatively Known As: A2 Stainless Steel Wood Screw, Countersunk Timber Screw, Partial Thread Wood Screw, Outdoor Wood Screw, Stainless Steel Wood Fastener
Technical Specifications
- Nominal diameter: 8 mm
- Length: 240 mm
- Thread length: 100 mm
- Head type: Countersunk milling pocket head with milling pockets
- Head diameter: 15 mm
- Head height: 4.9 mm
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Single start thread
- Core diameter: 5.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Screw-in angle: 0-90 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Suitable machines: Würth BS 18-A Power
- Screw approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.9mm x 240mm x 15mm
- Weight: 0.15 kg
Key Features
- Made of high-quality austenitic A2 stainless steel for wood-wood connections (spruce) in outdoor areas exposed to the elements
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- More stability, one-handed working, precise positioning due to the tight-fit recess and perfect fit of the bit
- Fewer bit changes, one bit for many screw diameters
- Compatibility with previous AW drive
- Higher breaking torque
- Higher power transmission in hardwoods due to reinforced, asymmetrical thread flank geometry of the single thread
- Better anchoring thanks to higher thread flanks
- Smooth thread start ensures optimised recessing and biting of the screw
- Reduced splitting effect due to displacement effect of the dome-shaped milling elements in the tip
- Friction-reduced thread rotation allows reduction of the screw-in force to be applied
- Stainless mounting for accessible wood connections in outdoor areas exposed to weathering
- Made of austenitic, non-magnetic and non-rusting A2 stainless steel
- Can be used in rural or urban environments or industrial atmospheres without significant exposure to chlorides or SO2
- With friction-reducing slide coating for easy fastening
Professional Installation Requirements
- Professional installation recommended using appropriate power tools such as Würth BS 18-A Power for optimal fastening and safety.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Element construction
- Timber panel construction
- Timber construction
- Wet areas
- Play equipment
- Outdoors
Standards & Compliance
- AS/NZS 4785 – Timber fasteners (relevant for timber screws and fasteners)
Environmental Benefits
- Made from corrosion-resistant stainless steel for long-lasting durability reducing replacement frequency
- Suitable for outdoor use minimizing environmental impact from frequent repairs
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 4 A2 CSMP Timber Screw 75 PCS is available for immediate purchase, ideal for outdoor timber construction and structural woodwork applications.
