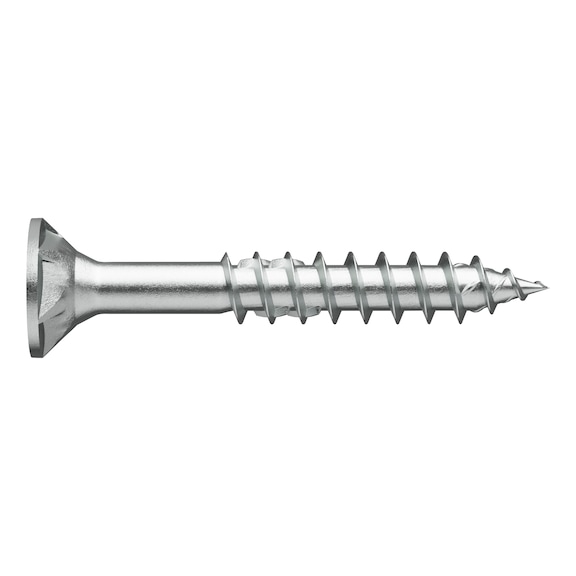

ASSY® 4 A2 CSMP Timber Screw | A2 Stainless Steel | Countersunk Milling Pocket Head | @Pack of 75 | by Wurth
ASSY® 4 A2 CSMP timber screws are crafted from high-quality A2 stainless steel, designed for outdoor wood connections. With a unique countersunk milling pocket head and partial thread, these screws ensure optimal power transmission and stability during installation. Ideal for structural woodwork, façades, and outdoor applications, they provide long-lasting durability and resistance to corrosion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 A2 CSMP Timber Screw | A2 Stainless Steel | Countersunk Milling Pocket Head | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 18748080
Alternatively Known As: A2 Stainless Steel Wood Screw, ASSY 4 Timber Screw, Countersunk Wood Screw, Partial Thread Wood Screw, Stainless Steel Wood Fastener
Technical Specifications
- Nominal diameter: 8 mm
- Length: 80 mm
- Thread length: 50 mm
- Head type: Countersunk milling pocket head with milling pockets
- Head diameter: 15 mm
- Head height: 4.9 mm
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Partial thread, single start thread
- Core diameter: 5.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Screw-in angle: 0-90 degrees
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Suitable machines: Würth BS 18-A Power
- Screw approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.9mm x 80mm x 15mm
- Weight: 0.15 kg
Key Features
- Universal partially threaded screw made of high-quality austenitic A2 stainless steel for wood-wood connections (spruce) in outdoor areas exposed to the elements
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- More stability, one-handed working, precise positioning due to the tight-fit recess and perfect fit of the bit
- Fewer bit changes, one bit for many screw diameters
- Compatibility with previous AW drive
- Higher breaking torque
- Higher power transmission in hardwoods due to reinforced, asymmetrical thread flank geometry of the single thread
- Better anchoring thanks to higher thread flanks
- Smooth thread start ensures optimised recessing and biting of the screw
- Reduced splitting effect due to displacement effect of the dome-shaped milling elements in the tip
- Friction-reduced thread rotation allows reduction of the screw-in force to be applied
- Stainless mounting for accessible wood connections in outdoor areas exposed to weathering
- Made of austenitic, non-magnetic and non-rusting A2 stainless steel
- Can be used in rural or urban environments or industrial atmospheres without significant exposure to chlorides or SO2
- With friction-reducing slide coating for easy fastening
Professional Installation Requirements
- Professional installation recommended to ensure correct torque and fastening for structural integrity.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Element construction
- Timber panel construction
- Timber construction
- Wet areas
- Play equipment
- Outdoors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant stainless steel for long-lasting durability reducing replacement frequency
- Suitable for outdoor use minimizing environmental impact from frequent repairs
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 4 A2 CSMP Timber Screw 75 PCS is available for immediate purchase, ideal for outdoor timber construction and structural woodwork applications.
