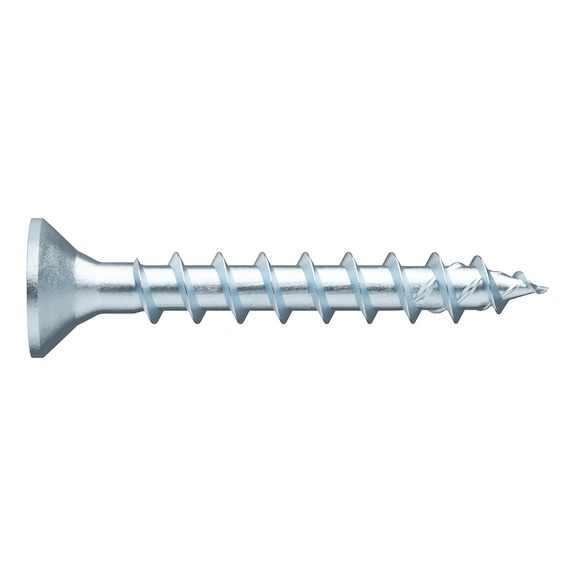

ASSY® 4 CS Fittings Screw | Full Thread & Countersunk Head | Zinc Plated Steel | @Pack of 250 | by Wurth
ASSY® 4 CS fittings screws are designed for universal fastening in wood and derived timber products. With a full thread and countersunk head, these zinc plated steel screws ensure strong anchorage and a flush fit in metal fittings. Ideal for furniture assembly and cabinet installation, they feature a smooth thread start and RW10 internal drive for optimal power transmission, making them perfect for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal diameter: 3 mm
- Length: 35 mm
- Head type: Countersunk head
- Head diameter: 5.9 mm
- Head height: 1.9 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 30 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Min/max screw-in angle: 0-90 degrees
- Product weight per item: 1.176 g
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL
- Suitable machines: Würth BS 12-A Power
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.9mm x 35mm x 5.9mm
- Weight: 0.0012 kg
Key Features
- Full-thread wood screw with coarse thread design for strong anchorage
- Countersunk head for flush fitting in metal fittings with metal countersinks
- RW10 internal drive recess for ideal power transmission and fewer bit changes
- Hardened steel construction with zinc plating for corrosion resistance
- Tip with hilltop milling cutter reduces splitting and optimizes screw-in force
- Smooth thread start for optimized recessing and biting
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Maximum overtightening safety with high feed performance
Professional Installation Requirements
- Installation by professionals or skilled personnel recommended to ensure proper fastening and safety.
Applications
- Universal fastening in wood and derived timber products
- Furniture assembly
- Cabinet and fitting installation
- Suitable for softwood, hardwood, LVL, plywood boards
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth ASSY® 4 CS full thread countersunk head steel screws are available for immediate purchase, ideal for furniture, cabinet, and general wood fastening applications.
