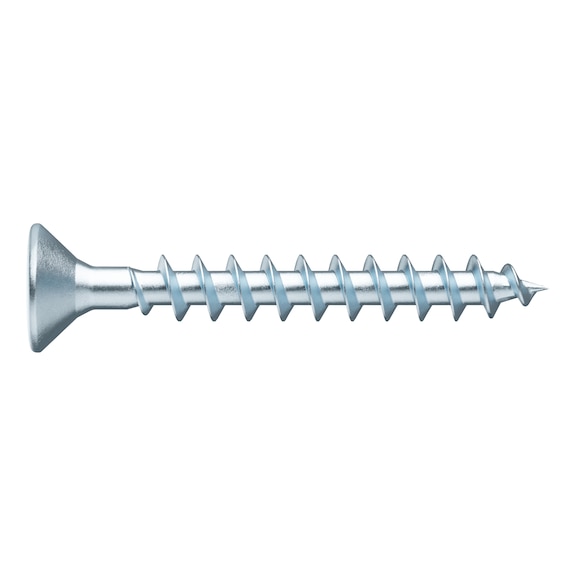

ASSY® 4 CS MDF Fittings Screw | Full Thread Countersunk Head | Zinc-Plated Steel | @Pack of 1000 | by Wurth
ASSY® 4 CS MDF fittings screws are designed for optimal fastening in MDF and other wood products. Featuring a full thread and countersunk head, these screws ensure a secure fit with minimal splitting. Ideal for furniture assembly and cabinet making, they provide excellent stability and precise positioning, making them perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 CS MDF Fittings Screw | Full Thread Countersunk Head | Zinc-Plated Steel | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 190013517
Alternatively Known As: MDF fitting screws, full thread countersunk screws, cabinet connector screws, wood screws for MDF, zinc plated wood screws
Technical Specifications
- Nominal diameter: 3.4 mm
- Length: 17 mm
- Head type: Countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 13 mm
- Core diameter: 1.8 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 30 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Screw-in angle range: 45-90 degrees
- Product weight per item: 0.700 g
- Suitable materials: Wood, derived timber products, MDF
- Suitable machines: Würth BS 12-A Power
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 17mm x 7mm
- Weight: 0.7 kg
Key Features
- Full-thread screw with countersunk head for fastening fittings or cabinet connectors in highly compressed fibreboards such as MDF
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Maximum reliability due to asymmetrical single thread
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flank arrangement
- Ideal for friction-free screw fitting in plastic anchors or homogeneous compressed wood materials
- Rapid screw bite through continuous thread design to tip
- Non-spreading screwing thanks to tip geometry without splitting components
Professional Installation Requirements
- Installation by professionals or skilled personnel is recommended to ensure proper fastening and safety.
Applications
- Interior fitting
- Exhibition stand construction
- Furniture assembly
- Cabinet making
- Store construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
- Efficient fastening reduces material waste in construction
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
Wurth ASSY® 4 CS MDF fittings screws are available for immediate purchase, ideal for interior fitting, furniture, and cabinet construction applications.
